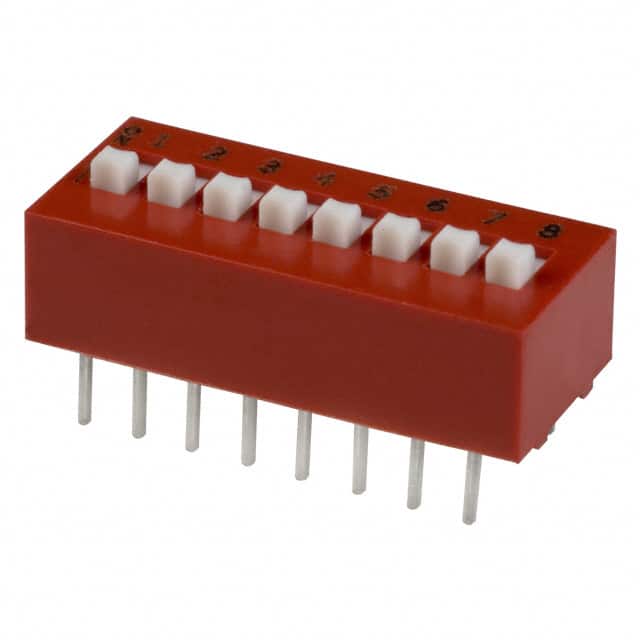

78B08ST The Grayhill 78B08ST is an 8-position SPST DIP switch designed for through-hole mounting. It features a raised slide actuator and a tape seal.
Mfr Part #:

78B08ST

Available from 1 distributors
Mfr Name: Grayhill Inc.
Grayhill Inc.
The Grayhill 78B08ST is an 8-position SPST DIP switch designed for through-hole mounting. It features a raised slide actuator and a tape seal.
✓ Total Stock: 348 pcs
$ Price Range: $0.75

78B08ST Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
348 pcs
On Request
348 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

78B08ST Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Level
Actuator Type
Circuit
Contact Finish
Contact Material
Current Rating (Amps)
Features
Height Above Board
Mounting Type
Number of Positions
Operating Temperature
Pitch
Switch Type
Tape & Reel
Termination Style
Voltage Rating
Washable
View Similar Products (0)

78B08ST Description

Short technical summary and product information.

The Grayhill 78B08ST is a single-pole, single-throw (SPST) DIP switch with 8 positions. It is designed for through-hole mounting and features a raised slide actuator for easy operation. The switch has a contact rating of 50 mA at 30 VDC and a mechanical life of 2,000 actuations.



This DIP switch is constructed with a copper alloy contact material and gold contact finish, ensuring reliable performance. It operates within a temperature range of -40°C to 85°C and is washable. The pitch is 2.54mm (0.100"), and the height above the board is 8.00mm (0.315").



The 78B08ST includes a tape seal for protection during handling and soldering processes. It is RoHS3 compliant and has an MSL rating of 1.

78B08ST Quick Information

Product Type: DIP Switch
Series: 78B
Canonical Name: Grayhill 78B08ST SPST Through-Hole DIP Switch
Subcategory: Thru-Hole DIP Switch

78B08ST Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

78B08ST Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

78B08ST Features

  • 8-position SPST circuitry for simple switching.
  • Through-hole mounting for secure PCB connection.
  • Raised slide actuator for easy operation.
  • Rated for 30 VDC with 150mA current capacity.
  • Washable design with tape seal protection.

78B08ST Applications

  • Ideal for board-level configuration settings.
  • Used in electronic test equipment.
  • Suitable for industrial control systems.
  • Applicable in telecommunications hardware.

78B08ST FAQs

5 frequently asked questions generated from this part’s specifications.
What type of circuitry does the Grayhill 78B08ST DIP switch have?

The Grayhill 78B08ST DIP switch features Single Pole Single Throw (SPST) circuitry.

How many positions are available on the 78B08ST DIP switch?

The 78B08ST DIP switch has 8 positions.

What is the voltage rating for the Grayhill 78B08ST DIP switch?

The Grayhill 78B08ST DIP switch has a voltage rating of 30 VDC.

What is the mechanical life cycle of the 78B08ST DIP switch?

The 78B08ST DIP switch has a mechanical life cycle of 2,000 actuations.

What is the operating temperature range for this DIP switch?

The operating temperature range for this DIP switch is -40°C to 85°C.
