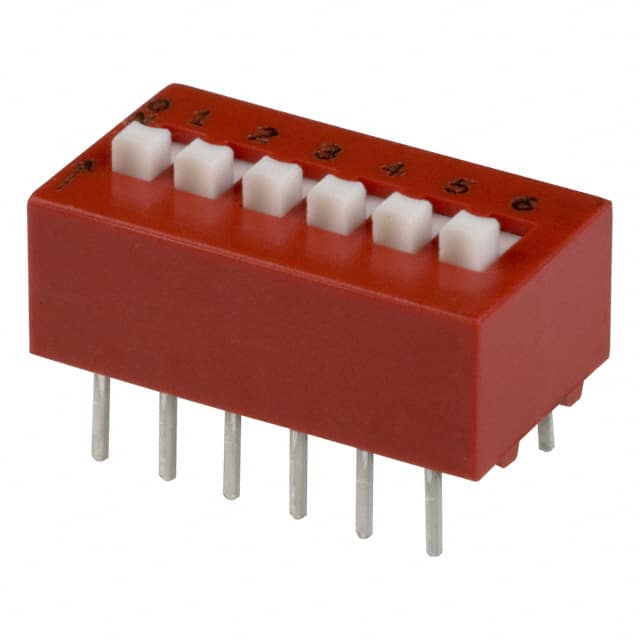

78B06T The Grayhill Inc. 78B06T is a thru-hole DIP switch with SPST circuitry and 6 positions. It is rated for 150mA at 30VDC and has a mechanical life of 2,000 cycles.
Mfr Part #:

78B06T

Available from 2 distributors
Mfr Name: Grayhill Inc.
Grayhill Inc.
The Grayhill Inc. 78B06T is a thru-hole DIP switch with SPST circuitry and 6 positions. It is rated for 150mA at 30VDC and has a mechanical life of 2,000 cycles.
✓ Total Stock: 730 pcs
$ Price Range: $0.75

78B06T Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
720 pcs
On Request
720 pcs On Request 1 On Request On Request On Request On Request On Request
Partservice ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

78B06T Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Level
Actuator Type
Circuit
Contact Finish
Contact Material
Current Rating (Amps)
Height Above Board
Mounting Type
Number of Positions
Operating Temperature
Pitch
Termination Style
Voltage Rating
Washable
View Similar Products (0)

78B06T Description

Short technical summary and product information.

The Grayhill Inc. 78B06T is a thru-hole mounted DIP switch designed for various electronic applications. It features Single Pole Single Throw (SPST) circuitry across 6 positions, offering reliable switching capabilities.



This model is rated for a current of 150mA at 30VDC, making it suitable for low-power switching tasks. The contact material is copper alloy with a gold finish, ensuring good conductivity and corrosion resistance. The switch has a pitch of 2.54mm (0.100 inches) and a height above board of 0.315 inches (8.00mm).



With a mechanical life rating of 2,000 cycles, the 78B06T is built for durability. It operates within a temperature range of -40°C to 85°C. The actuator type is a raised slide, providing clear visual indication of the switch position. Environmental specifications include resistance to vibration, shock, thermal shock, and moisture, meeting MIL-STD-202 Method 106 for moisture resistance.

78B06T Quick Information

Product Type: DIP Switch
Series: 78B
Canonical Name: Grayhill Inc. 78B06T SPST Thru-Hole DIP Switch
Subcategory: Thru-Hole DIP Switch

78B06T Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

78B06T Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

78B06T Features

  • SPST circuitry across 6 positions.
  • Rated for 150mA at 30VDC.
  • Through-hole mounting with 2.54mm pitch.
  • Mechanical life of 2,000 cycles.
  • Operates from -40°C to 85°C.

78B06T Applications

  • Suitable for low-power switching.
  • Used in general electronic assemblies.
  • Ideal for circuit board prototyping.
  • Reliable for control panel applications.

78B06T FAQs

6 frequently asked questions generated from this part’s specifications.
What is the voltage rating for the 78B06T DIP switch?

The 78B06T DIP switch has a voltage rating of 30VDC.

What type of mounting does the 78B06T DIP switch use?

The 78B06T DIP switch uses Through Hole mounting.

What is the operating temperature range for the 78B06T DIP switch?

The operating temperature range for the 78B06T DIP switch is -40°C to 85°C.

What is the RoHS status of the 78B06T DIP switch?

The 78B06T DIP switch is RoHS3 Compliant.

How many positions does the 78B06T DIP switch have?

The 78B06T DIP switch has 6 positions.

What is the mechanical life of the 78B06T DIP switch?

The 78B06T DIP switch has a mechanical life of 2,000 cycles.
