| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
895 pcs
|
895 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Level | |
| Actuator Type | |
| Circuit | |
| Contact Finish | |
| Contact Material | |
| Current Rating (Amps) | |
| Features | |
| Height Above Board | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Switch Type | |
| Termination Style | |
| Voltage Rating | |
| Washable |

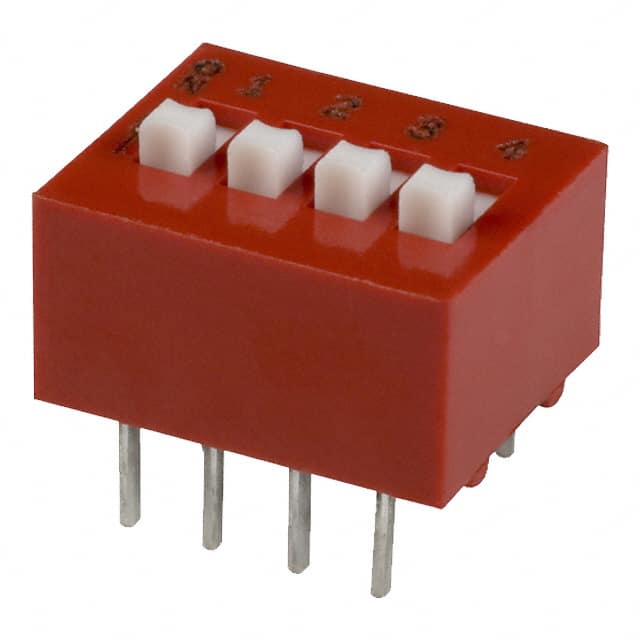

The Grayhill Inc. 78B04ST is a 4-position Single Pole Single Throw (SPST) DIP switch. It is designed for through-hole mounting and features a raised slide actuator for easy operation. The switch has a contact rating of 150mA at 30VDC and a gold contact finish over a copper alloy material.
This DIP switch operates within a temperature range of -40°C to 85°C and is washable. It includes a tape seal for protection during handling and manufacturing processes. The pitch is 2.54mm (0.100"), and the height above the board is 8.00mm (0.315").
The 78B04ST is RoHS3 Compliant and has an MSL rating of 1. Its mechanical life cycle is rated for 2,000 actuations. This component is suitable for various electronic applications requiring reliable manual switching.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 78B04ST DIP switch features SPST circuitry.
The 78B04ST DIP switch has 4 positions.
The 78B04ST DIP switch is designed for through-hole mounting.
The 78B04ST DIP switch operates between -40°C and 85°C.
The switch rating is 150mA at 30VDC.
The mechanical life cycle is 2,000 actuations.
