Mfr Part #:

788862-1

Available from 1 distributors

Mfr Name: TE Connectivity

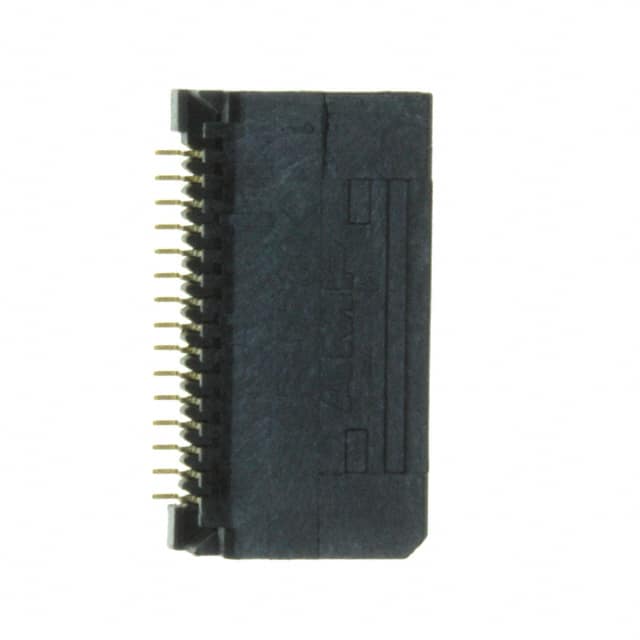

XFP receptacle connector with 30 positions, surface mount right angle termination, gold plated contacts.

✓ Total Stock: 106 pcs

$ Price Range: $5.76 - $9.35

788862-1 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Tokyo Device ✓ Non-Authorised Inventory information	106 pcs On Request	106 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

788862-1 Description

Short technical summary and product information.

The TE Connectivity 788862-1 is an XFP receptacle connector assembly designed for high-speed pluggable interface applications. It features 30 positions with a surface mount, right angle mounting style and solder termination for reliable PCB attachment. The contacts are finished with 15.0 µin (0.38 µm) gold plating to ensure excellent conductivity and corrosion resistance. A built-in board guide aids in accurate alignment during assembly. The connector is RoHS3 compliant, REACH unaffected, and classified with MSL level 1 for unlimited floor life.

This connector is suitable for use in networking and telecommunications equipment where XFP transceiver modules are employed. Its compact right-angle SMD footprint saves board space and allows for efficient routing. The robust gold contact finish supports repeated mating cycles. As a pluggable connector assembly, it enables easy module replacement and system upgrades.

With a 30-position design, this receptacle mates with standard XFP modules. The solder termination provides a permanent and reliable electrical connection when reflow soldered. The board guide feature simplifies manual or automated placement. Compliance with RoHS and REACH regulations makes it suitable for global markets requiring environmental standards.

788862-1 Quick Information

Product Type: Pluggable Connector Assembly

Series: PT30

Canonical Name: XFP 30 Position Receptacle Connector, Surface Mount, Right Angle, Solder Termination

Subcategory: Receptacle

788862-1 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

788862-1 Estimated Pricing

Qty	Low	High
1+	$9.35	$9.35
10+	$8.42	$8.42
25+	$7.93	$7.93
50+	$7.73	$7.73
100+	$7.53	$7.53
250+	$6.71	$6.71
480+	$6.30	$6.30
960+	$5.76	$5.76

Estimated market price range - modelled values for guidance only, not live distributor offers.

788862-1 Features

XFP 30 position receptacle connector.
Surface mount right angle termination.
Gold plated contacts (15.0 µin).
Integrated board guide for alignment.
RoHS3 and REACH compliant.

788862-1 Applications

Used in XFP transceiver module interfaces.
Suitable for high-speed networking equipment.
Ideal for telecom and data center hardware.
Board-to-module pluggable connections.

788862-1 FAQs

5 frequently asked questions generated from this part’s specifications.

What type of connector is this?

This is an XFP receptacle connector with 30 positions.

What is the mounting style?

Surface Mount, Right Angle with Solder termination.

Is the connector RoHS compliant?

Yes, it is listed as RoHS3 compliant (unverified confidence).

What is the contact finish?

Gold, 15.0 µin (0.38 µm) thickness.

Does it include any alignment features?

Yes, it has a board guide feature.
