| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
55 pcs
|
55 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| China RoHS | |
| Connector Type | |
| Contact Size | |
| Contact Type | |
| ELV | |
| Fastening Type | |
| Halogen Free | |
| Housing Color | |
| Ingress Protection | |
| Material Flammability Rating | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Orientation | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Type |

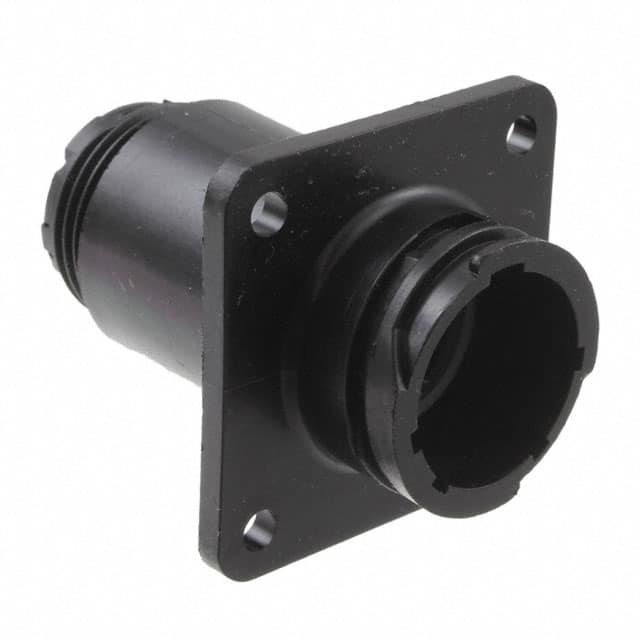

The TE Connectivity 788158-2 is a 9-position circular connector housing designed for use with male pins. It is a receptacle housing with shell size 13-9, made from black polyamide (PA) nylon material. This housing is part of the CPC (Circular Plastic Connector) series and offers a robust, lightweight solution for various interconnect applications.
Mechanically, the housing features a panel mount with flange, secured by threaded fastening for reliable mating. The keyed orientation ensures correct alignment during connection. It accepts size 16 crimp contacts, providing flexibility in wire termination. The unshielded design is suitable for applications where electromagnetic interference is not a concern.
Environmentally, the 788158-2 is rated IP67 for dust tight and waterproof protection, making it ideal for harsh environments. The housing material has a UL94 V-0 flammability rating, ensuring safety in fire-prone conditions. It complies with RoHS, REACH (no SVHC), ELV, and China RoHS directives, as verified by the manufacturer's compliance statement.
Typical applications include industrial control systems, automotive sensor connections, and other equipment requiring a durable, sealed connector housing. The panel mount flange allows easy installation in panels or enclosures.
| Qty | Low | High |
|---|---|---|
| 1+ | $15.55 | $15.55 |
| 10+ | $14.19 | $14.19 |
| 25+ | $13.16 | $13.16 |
| 50+ | $12.71 | $12.71 |
| 100+ | $11.83 | $11.83 |
| 300+ | $11.55 | $11.55 |
| 1,050+ | $11.20 | $11.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 788158-2 has 9 positions.
The housing is panel mount with a flange.
It is rated IP67 for dust tight and waterproof protection.
The housing material has a UL94 V-0 flammability rating.
The shell is made of polyamide (PA) nylon.
No, it is unshielded.
It accepts size 16 contacts.
