| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
399 pcs
|
399 pcs | On Request | 1 | On Request | On Request | 917 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Halogen Free | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Solder Process Capability | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Type |

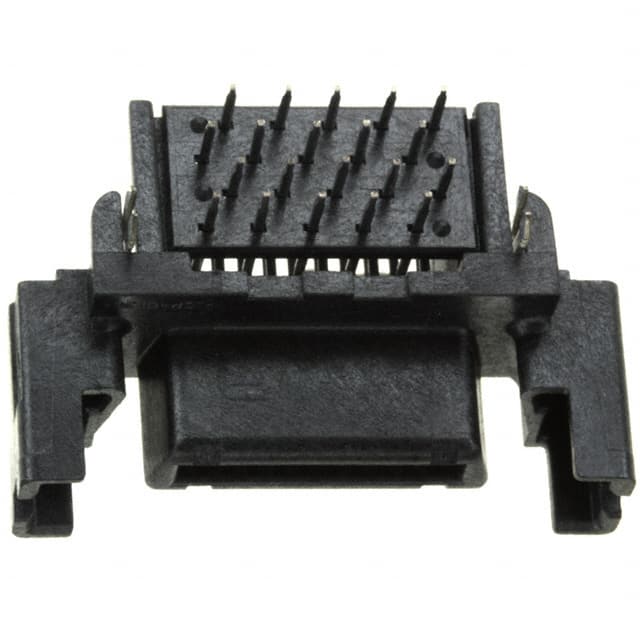

The TE Connectivity 787653-2 is a 20-position board to board receptacle connector designed for reliable interconnect in electronic assemblies. It features 2 rows of outer shroud contacts with gold plating (30µin) for excellent conductivity and corrosion resistance. The connector is mounted through hole with a right angle orientation, making it suitable for compact PCB layouts. It includes board lock and latch lock features to secure the mating connection. The contact finish thickness is 30.0µin (0.76µm). The part is wave solder capable to 240°C. Note that this component is not EU RoHS compliant due to lead content in the component part, as confirmed by the manufacturer's datasheet.
It has 20 positions arranged in 2 rows.
Through hole, right angle.
Gold with a thickness of 30.0µin (0.76µm).
No, it is not compliant per the TE datasheet (EU RoHS Directive 2011/65/EU), due to lead content.
Wave solder capable to 240°C.
Yes, it includes board lock and latch lock.
