| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
225 pcs
|
225 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Termination | |
| Type |

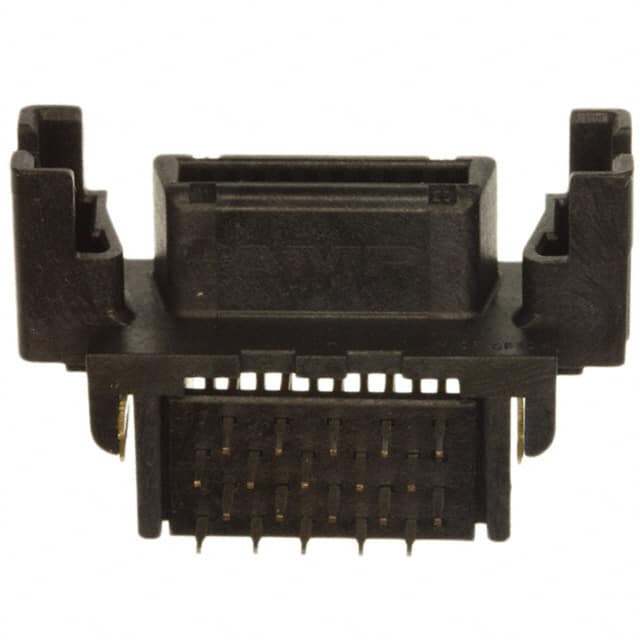

The TE Connectivity 787653-1 is a board-to-board receptacle designed for reliable parallel board stacking. It features 20 positions arranged in 2 rows, providing a compact interconnect solution for dense PCB layouts.
The connector uses a through-hole, right-angle mounting style with solder termination, ensuring a secure mechanical and electrical connection. The contacts are finished with 30.0µin (0.76µm) gold, offering excellent conductivity and corrosion resistance.
This receptacle features outer shroud contacts and includes board locks and latch locks for secure attachment to the PCB and mating connector. These features help maintain connection integrity in applications subject to vibration or mechanical stress.
Typical applications include computer peripherals, industrial equipment, and other electronic systems requiring reliable board-to-board connections.
The connector type is a receptacle.
It has 20 positions arranged in 2 rows.
The mounting type is through-hole, right angle.
The termination method is solder.
The contact finish is gold with a thickness of 30.0µin (0.76µm).
It includes board lock and latch lock features.
