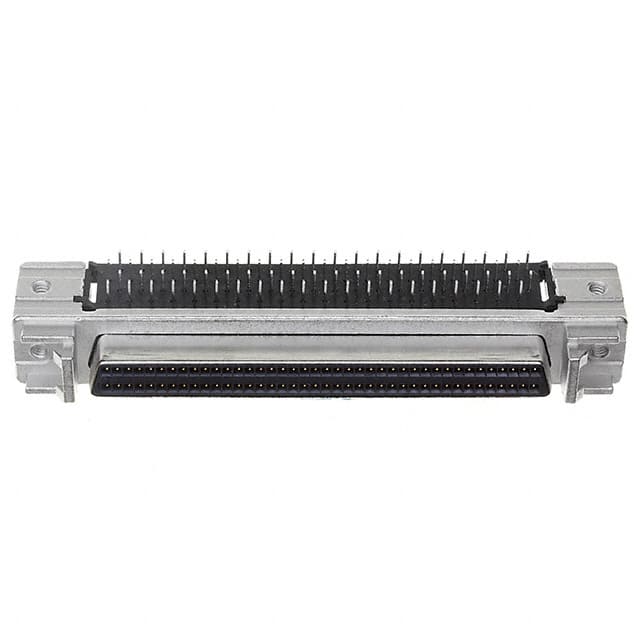

787190-8 TE Connectivity 787190-8 D-Sub receptacle connector with 80 female socket contacts, right angle solder termination, and gold plated contacts.
Mfr Part #:

787190-8

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 787190-8 D-Sub receptacle connector with 80 female socket contacts, right angle solder termination, and gold plated contacts.
✓ Total Stock: 56 pcs
$ Price Range: $22.34

787190-8 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Chanetech ✓
Non-Authorised Inventory information
56 pcs
On Request
56 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

787190-8 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Backset Spacing
Connector Style
Connector Type
Contact Finish
Contact Type
Current Rating (Amps)
Features
Flange Feature
Material Flammability Rating
Mounting Type
Number of Positions
Number of Rows
SVHC Present
Shell Material, Finish
Shell Size, Connector Layout
Tape & Reel
Termination
View Similar Products (0)

787190-8 Description

Short technical summary and product information.

The TE Connectivity 787190-8 is a 80-position D-Sub receptacle connector designed for board-edge, through-hole mounting with a right-angle orientation. It features female socket contacts with gold finish for reliable signal connections. The connector includes a shielded metal shell made of steel with nickel plating.



The connector has a 2-row configuration with a 0.050 inch pitch and 0.100 inch row spacing. The backset spacing is 3.71mm. It includes a flange feature with housing/shell (2-56) threads and latchblocks/rails for secure mounting. The insulator material meets UL94 V-0 flammability rating.



Each contact is rated for 1A current. The connector is suitable for signal applications requiring high-density interconnection in a compact D-sub form factor. The right-angle design allows for efficient PCB layout and is commonly used in I/O, data, and communication equipment.

787190-8 Quick Information

Product Type: D-Sub Connector Assembly
Series: 787190
Canonical Name: TE Connectivity 787190-8 D-Sub Receptacle Connector, 80 Position, Female Sockets, Right Angle Solder
Subcategory: D-Sub Connector Assemblies

787190-8 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

787190-8 Estimated Pricing

Qty Low High
294+ $22.34 $22.34

Estimated market price range - modelled values for guidance only, not live distributor offers.

787190-8 Features

  • 80-position D-Sub receptacle with female sockets.
  • Right angle solder termination for board edge mounting.
  • Gold plated contacts for reliable signal connections.
  • Shielded steel shell with nickel plating.
  • UL94 V-0 rated insulator material.

787190-8 Applications

  • Used in computer I/O and data communication interfaces.
  • Suitable for high-density signal interconnection in rack systems.
  • Ideal for industrial control and automation equipment.
  • Common in telecommunications and networking hardware.
  • Applicable for test and measurement instrumentation.

787190-8 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the part number and manufacturer of this connector?

The part number is 787190-8 manufactured by TE Connectivity.

How many positions does this D-Sub connector have?

This connector has 80 positions arranged in 2 rows.

What is the mounting type and orientation?

The mounting type is board edge, through hole, right angle with solder termination.

What is the current rating of this connector?

Each contact is rated for 1 Amp.

What contact finish is used?

The contacts have a gold finish.

Is this connector shielded?

Yes, the connector is shielded and has a steel, nickel plated shell.

What is the flammability rating of the insulator?

The insulator material has a UL94 V-0 flammability rating.
