| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
276 pcs
|
276 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination | |
| Termination Style |

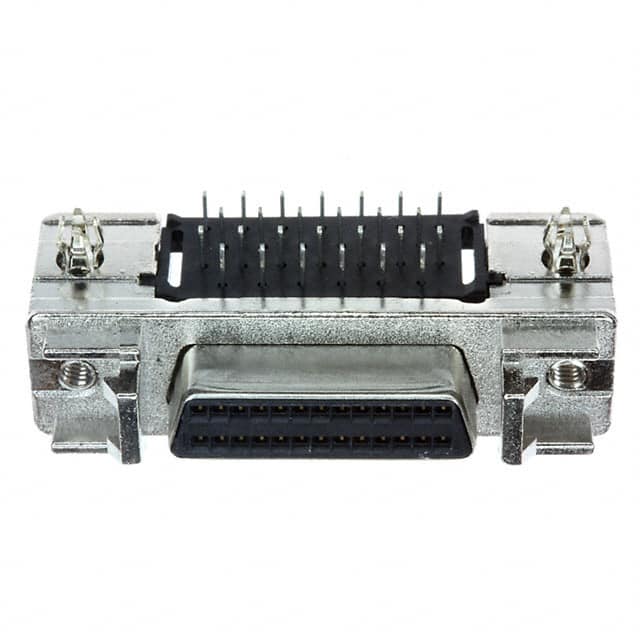

The TE Connectivity 787171-2 is a D-Sub receptacle connector featuring 26 female socket contacts arranged in 2 rows. It uses a right-angle solder termination for board-edge through-hole mounting, making it suitable for space-constrained PCB layouts.
This connector has a steel shell with nickel plating and includes shielding for EMI protection. A board lock feature secures the connector to the PCB during assembly. The contacts are gold-plated for reliable signal transmission, and the insulator is rated UL94 V-0 for flammability.
The shell size uses a 0.050 inch pitch with 0.100 inch row-to-row spacing. The flange includes housing/shell (2-56) threads and latchblocks with rails for mating hardware. Current rating is 1A per contact.
| Qty | Low | High |
|---|---|---|
| 1,008+ | $8.41 | $8.41 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 26 positions arranged in 2 rows.
It is a board edge, through-hole, right-angle mounting with solder termination.
The current rating is 1A per contact.
The contacts have a gold finish.
Yes, the connector is shielded and includes a board lock feature.
