| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
156 pcs
|
156 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination | |
| Termination Style |

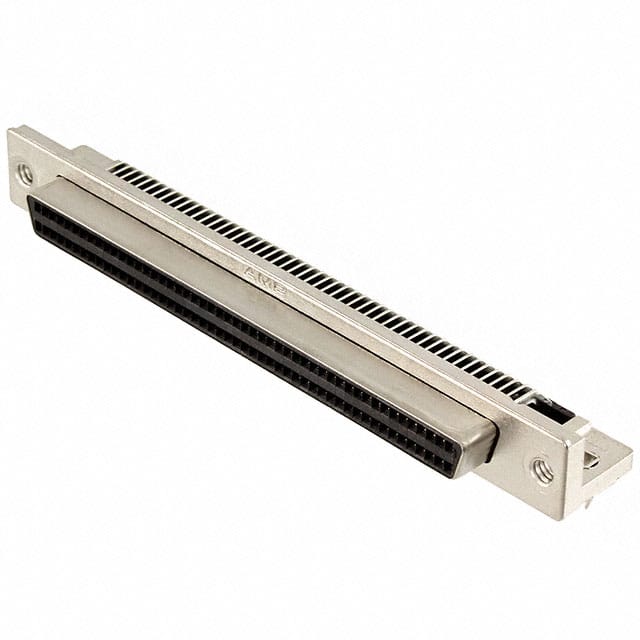

The TE Connectivity 787170-9 is a D-Sub receptacle connector assembly featuring 100 female socket contacts arranged in 2 rows. It is designed for board edge, through hole, right angle mounting with solder termination. The connector uses a 0.050 inch pitch with 0.100 inch row-to-row spacing.
Contact finish is gold for reliable signal integrity. The shell is steel with nickel plating. The connector includes a board lock feature and is shielded for EMI protection. The housing material has a UL94 V-0 flammability rating.
This connector is rated for 1 A per contact and is suitable for signal applications. The backset spacing is 0.146 inches (3.71 mm). Flange feature uses housing/shell (4-40) threading.
| Qty | Low | High |
|---|---|---|
| 432+ | $29.91 | $29.91 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Receptacle, Female Sockets; D-Type.
100 positions in 2 rows.
Board Edge, Through Hole, Right Angle mounting with Solder termination.
1 A per contact.
Gold.
Steel, Nickel Plated.
UL94 V-0.
