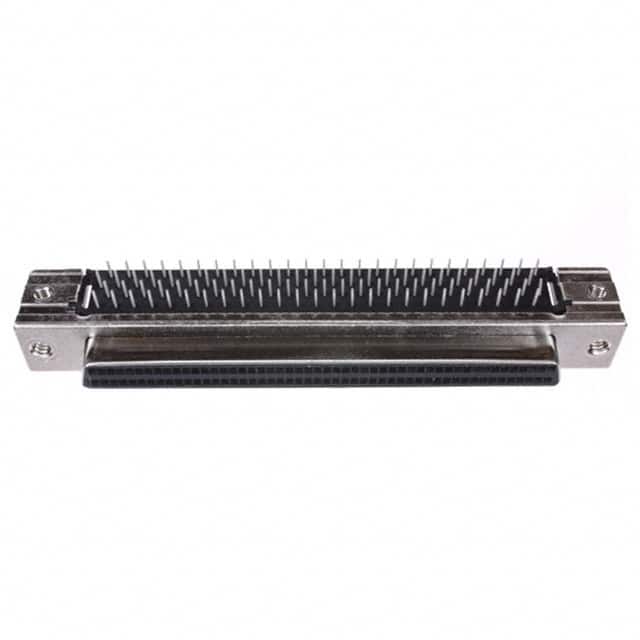

The TE Connectivity 787169-9 is a 100-position D-Sub receptacle from the AMPLIMITE 0.50 Series, designed for cable-to-board applications. It features a right-angle PCB mount orientation with through-hole solder termination, making it suitable for edge-mounted designs. The connector has a 1.27mm centerline pitch and 2.54mm row-to-row spacing, with a full metal shell made of carbon steel plated with nickel over copper for EMI shielding.
Electrical specifications include a maximum contact current rating of 1A, with gold flash over palladium nickel contact plating on phosphor bronze base material. The housing is black thermoplastic rated UL 94V-0, and the operating temperature range spans -55°C to 105°C. The connector includes a latch-type mating retention and a 4-40 flange feature for secure mounting.
This component is packaged in tubes of 6 pieces. It is not RoHS compliant per the EU Directive 2011/65/EU. The recommended PCB thickness is 1.57mm, and the termination post length is 2.54mm.
| Qty | Low | High |
|---|---|---|
| 432+ | $24.57 | $24.57 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
100 positions arranged in 2 rows.
1.27 mm centerline pitch with 2.54 mm row-to-row spacing.
Maximum 1 A per contact.
Board edge, through-hole, right angle.
Yes, it has a full metal shell.
