| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Industrial Grade | |
| Material Flammability Rating | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination |

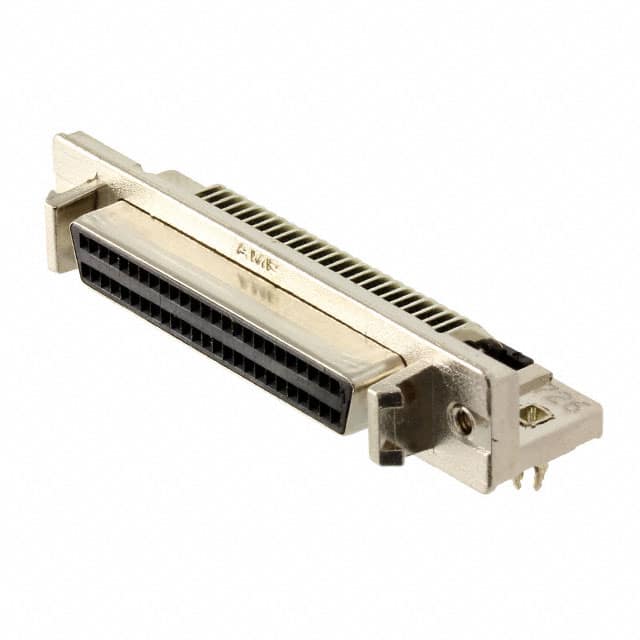

The 787082-5 is a D-Sub receptacle connector from TE Connectivity. It features 50 female socket contacts arranged in 2 rows, with a contact spacing of 0.050 inch pitch and 0.100 inch row-to-row. The connector uses right angle through-hole solder termination for secure board attachment. Contacts are gold plated for reliable low-resistance connections. The steel shell is nickel plated and includes a shielded design with board lock for stable mounting. The flange incorporates housing/shell (2-56) threads and latchblocks for secure mating. The backset spacing is 0.146 inch (3.71 mm). The insulator material has a UL94 V-0 flammability rating. Current rating is 1 A. This connector is RoHS3 compliant and REACH unaffected (unverified).
| Qty | Low | High |
|---|---|---|
| 1+ | $14.52 | $14.52 |
| 10+ | $14.51 | $14.51 |
| 200+ | $8.87 | $8.87 |
| 500+ | $7.40 | $7.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 50 positions.
The contact pitch is 0.050 inch, with row spacing of 0.100 inch.
The current rating is 1 A per contact.
It supports board edge, through hole, right angle mounting.
The contact finish is gold.
The shell is steel with nickel plating.
The insulator material has a UL94 V-0 rating.
