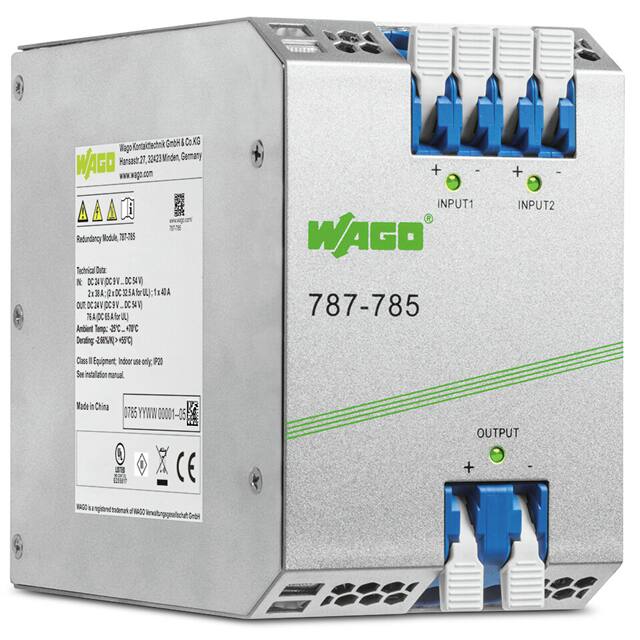

The Wago 787-785 is a diode redundancy module engineered to decouple two power supplies, ensuring a redundant and fail-safe power supply system. It operates with an input voltage range of 9 to 54 VDC and supports a nominal input voltage of 24 VDC. The module can handle an input current of up to 40 A per path, with a total input current capacity of 76 A.
The output specifications include a voltage range of 9 to 54 VDC and a nominal output voltage of 24 VDC. It provides a nominal output current of 76 A (UL max. 65 A) and a nominal output power of 1824 W, with a maximum output power of 4104 W. The voltage drop across the module is a maximum of 500 mV.
Designed for efficient operation, the module boasts an efficiency of 97% and a power loss of no more than 38 W at nominal load. It features Push-in CAGE CLAMP® connection technology for solid and fine-stranded conductors ranging from 1.5 to 16 mm² (16 to 6 AWG). The module is mounted on a standard DIN-35 rail (EN 60715).
Safety and environmental considerations include a protection class of IP20 and Class III. The operating temperature range is -25 to 70 °C, and storage temperature ranges from -40 to 85 °C. The module includes LEDs for input and output voltage monitoring.
The input voltage range is 9 to 54 VDC.
The nominal output current is 76 A, with a UL maximum of 65 A.
It uses Push-in CAGE CLAMP® connection technology.
The operating temperature range is -25 to 70 °C.
It is designed for DIN-35 rail mounting.
