Mfr Part #:

787-783

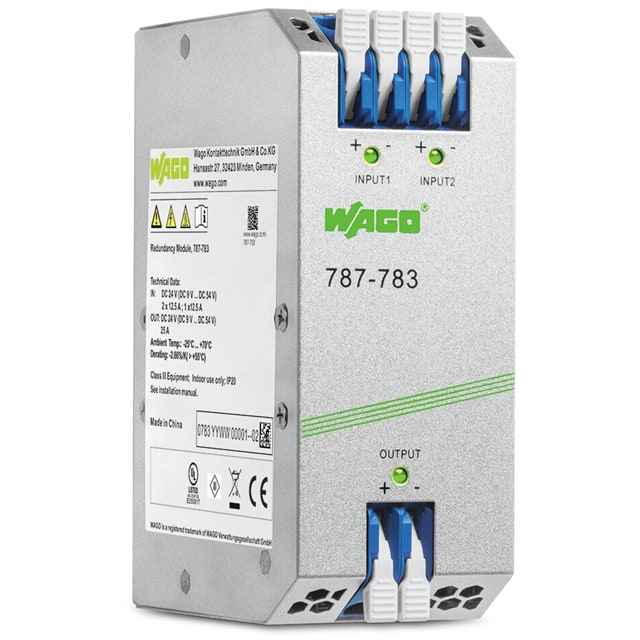

The WAGO Corporation 787-783 is a diode redundancy module designed for power supply applications. It features a 24 VDC output voltage and a 12.5 A current rating.

Stock on Request

787-783 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	Accessories
Manufacturer Name	Wago Corporation
Accessory Type	Redundancy Module
For Use With	WAGO 2706 Series
Output Current	12.5 A
Output Voltage	24 VDC

View Similar Products (0)

787-783 Description

Short technical summary and product information.

The WAGO Corporation 787-783 is a diode redundancy module, also known as item number 787-783. This module is designed to provide redundancy for power supplies, ensuring continuous operation in case of a primary power supply failure.

Key electrical specifications include an output voltage of 24 VDC and a maximum current rating of 12.5 A. This makes it suitable for applications requiring reliable power delivery.

The module is part of WAGO's range of power supply accessories. Its primary function is to prevent reverse current flow and ensure that the load is supplied by the functioning power supply in a redundant setup.

This diode redundancy module is intended for use with WAGO 2706 Series power supplies. It is a critical component for enhancing the reliability and uptime of electrical systems.

787-783 Quick Information

Product Type: Diode Redundancy Module

Canonical Name: Wago Corporation 787-783 Diode Redundancy Module

Subcategory: Redundancy Module

787-783 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

787-783 Features

Diode redundancy module for power supplies.
24 VDC output voltage.
12.5 A maximum current rating.
Enhances system reliability and uptime.
Compatible with WAGO 2706 Series.

787-783 Applications

Ensures continuous power supply.
Protects against reverse current flow.
Ideal for redundant power systems.
Used with WAGO 2706 Series PSUs.
Critical for high-availability applications.

787-783 FAQs

5 frequently asked questions generated from this part’s specifications.

What is the output voltage of the WAGO 787-783 diode redundancy module?

The output voltage is 24 VDC.

What is the maximum current rating for the WAGO 787-783 diode redundancy module?

The maximum current rating is 12.5 A.

What is the RoHS status of the WAGO 787-783 diode redundancy module?

The RoHS status is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the WAGO 787-783 diode redundancy module?

The Moisture Sensitivity Level (MSL) is 1 Unlimited.

What is the REACH status for the WAGO 787-783 diode redundancy module?

The REACH status is REACH Unaffected.
