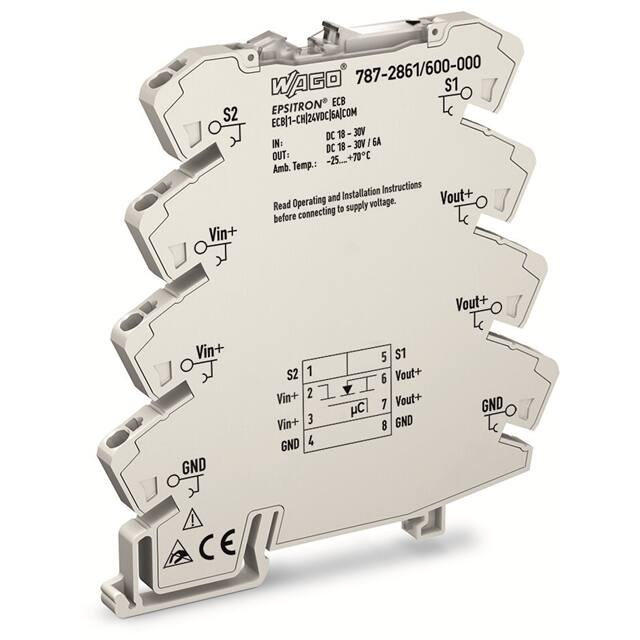

The Wago EPSITRON® Series of single-channel Electronic Circuit Breakers (ECBs) offers reliable protection against over-current and short-circuiting. This model, the 787-2861/600-000, is rated for 24 VDC and a nominal current of 6A.
Designed for efficiency, it triggers quickly in the event of a hard short-circuit (within 4 ms) and can also respond to low over-currents within EN 60204 conditions. The ECB features a slimline design and is suitable for DIN rail mounting. It offers a switch-on capacity greater than 50,000 µF and operates within a wide ambient temperature range of -25°C to +70°C.
Additional features include remote resetting and on/off switching via a digital input signal, and a triggered signal output that can be combined for up to 30 devices. Approvals include CE, UL 61010, and UL 2367.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The voltage rating is 24 VDC.
The current rating is 6A.
It is mounted on a DIN rail.
The operating temperature range is -25°C to +70°C.
The switch-on capacity is greater than 50,000 µF.
