| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Ambient Temperature | |
| Approval Agency | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |

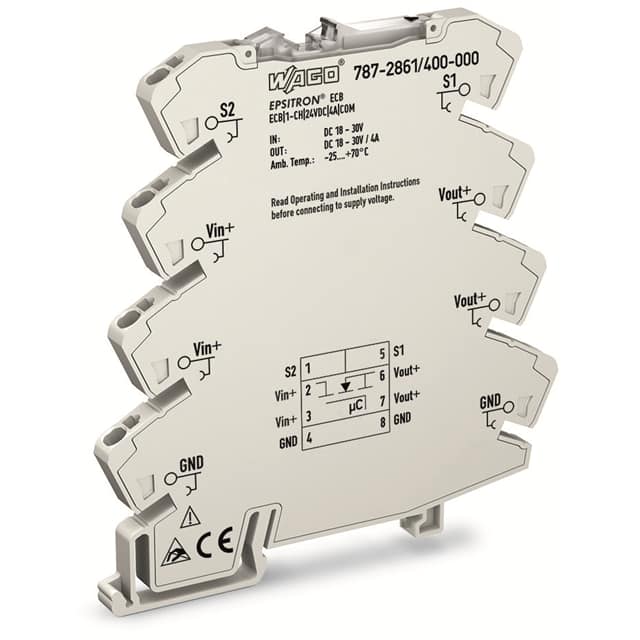

WAGO's EPSITRON® Series of single-channel Electronic Circuit Breakers (ECBs) reliably protect systems against over-current and short-circuiting. This model, the 787-2861/400-000, operates at 24 VDC and has a nominal current rating of 4A.
Designed for secondary-side fusing, it triggers even with low over-currents within EN 60204 conditions. Triggering occurs rapidly, within 4 ms in the event of a hard short-circuit. The device features a slimline design and is suitable for DIN rail mounting.
Key specifications include a switch-on capacity greater than 50,000 µF and a wide ambient temperature range of -25 to +70°C. Resetting and on/off switching can be performed directly on the module or remotely via a digital input signal. A triggered signal output is available and can be combined for up to 30 devices.
24 VDC.
-25 to +70 °C.
4 A.
1 pole.
>50,000 µF.
Not included.
DIN Rail.
