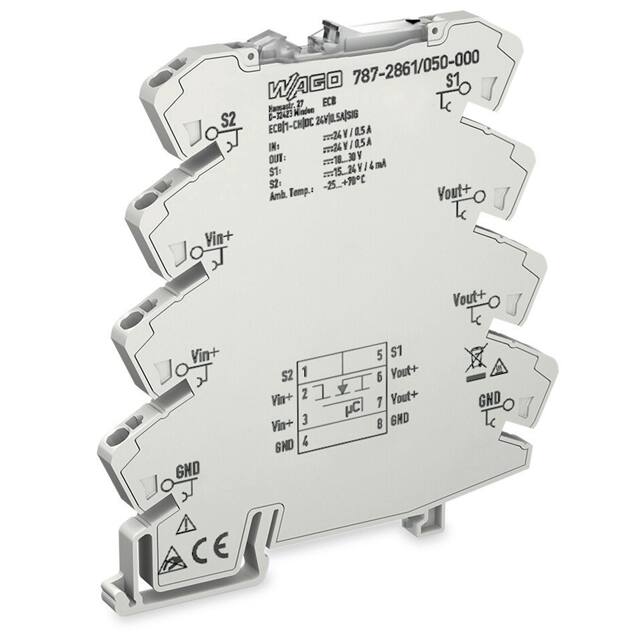

WAGO's EPSITRON® Series of single-channel Electronic Circuit Breakers (ECBs) offer reliable protection against over-current and short-circuiting. The 787-2861/050-000 model operates at 24 VDC and has a nominal current rating of 500mA.
This solid-state circuit breaker features a DIN rail mounting type and a rocker actuator. It is designed for high-speed tripping, triggering in just 4 ms in the event of a hard short-circuit. The ECB has a switch-on capacity greater than 50,000 µF and operates within a wide ambient temperature range of -25 to +70°C.
Benefits include the ability to reset or switch on/off directly on the module or remotely via a digital input signal. A triggered signal output can also be combined as a group signal for up to 30 devices. Approvals include CE.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 24 VDC.
The current rating is 500mA.
It is a solid-state breaker.
It is mounted on a DIN rail.
The operating temperature range is -25 to +70°C.
