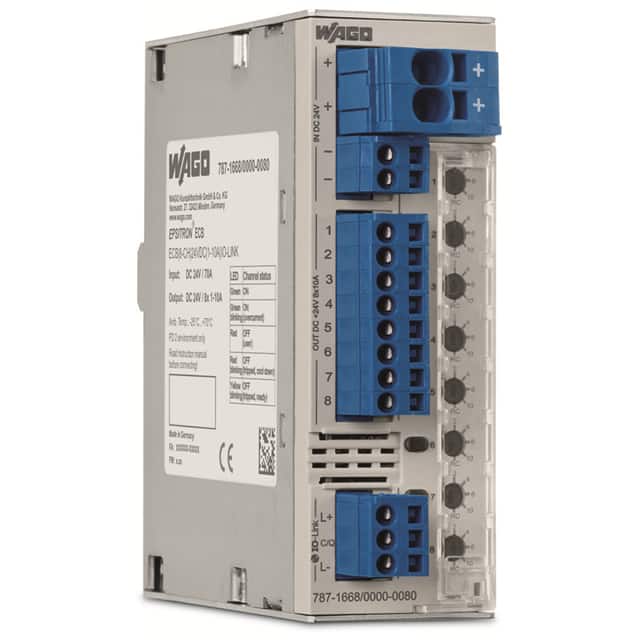

The Wago 787-1668/000-080 is a space-saving, 8-channel electronic circuit breaker (ECB) operating with a nominal input voltage of 24 VDC. Each channel is individually adjustable for current output, ranging from 1A to 10A, via a sealable selector switch or an IO-Link interface. This feature allows for precise load management and protection.
The ECB supports time-delayed switching of channels, with a delay ranging from 50 ms to 5 seconds, load-dependent. It has a high switch-on capacity of over 50,000 μF per channel, suitable for capacitive loads. The device features status indication through illuminated, three-colored buttons per channel, simplifying diagnostics and operation. The IO-Link interface provides status messaging and current measurement for each individual channel, enabling remote monitoring and control.
Mountable on a DIN rail, this circuit breaker is designed for efficient power distribution and protection in various industrial applications. Its typical efficiency is 99%, with power losses of less than 1.3W at no load and up to 20W at full load (8 x 10A).
The nominal operating voltage is 24 VDC, with an input and output voltage range of 18 to 30 VDC.
It has 8 channels.
Each channel's output current is adjustable from 1 to 10 A via IO-Link interface or selector switch (1, 2, 4, 6, and 10 A via switch).
Typical efficiency is 99%.
Power loss is ≤1.3 W at no load and ≤20 W at full load (8 x 10 A).
It mounts on a DIN rail.
Greater than 50000 µF per channel.
