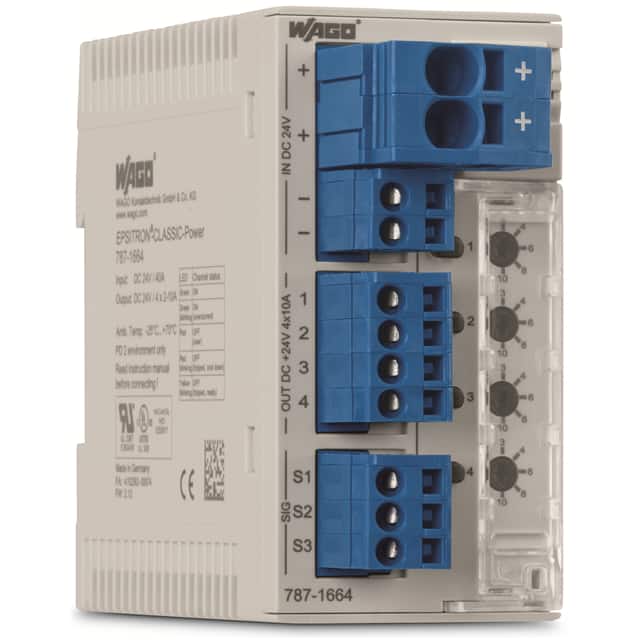

This Wago electronic circuit breaker, part number 787-1664/006-1000, offers a space-saving solution with four independent channels. Each channel can be individually adjusted for nominal current output ranging from 0.5A to 6A using a selector switch.
The device operates with a nominal input voltage of 24 VDC and supports an input voltage range of 18-30 VDC. The output voltage range is also 18-30 VDC, with a maximum voltage drop of 145 mV at 6A. It incorporates active current limitation for enhanced protection.
Designed for easy integration, this circuit breaker features DIN rail mounting. It includes status indication via LEDs and offers remote control input for resetting tripped channels or switching channels on/off. The unit has a trip time that is load-dependent, ranging from 16 ms to 5 seconds.
With a high efficiency of 99% and a maximum power loss of 0.77W (or 4.3W at 4x6A), this circuit breaker is suitable for various industrial applications requiring reliable circuit protection.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal input voltage is 24 VDC.
The current rating is adjustable from 0.5A to 6A per channel.
This module has 4 channels.
The trip time is load-dependent, ranging from 16 ms to 5 seconds.
It is designed for DIN rail mounting.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
