| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12 pcs
|
12 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination | |
| Termination Style |

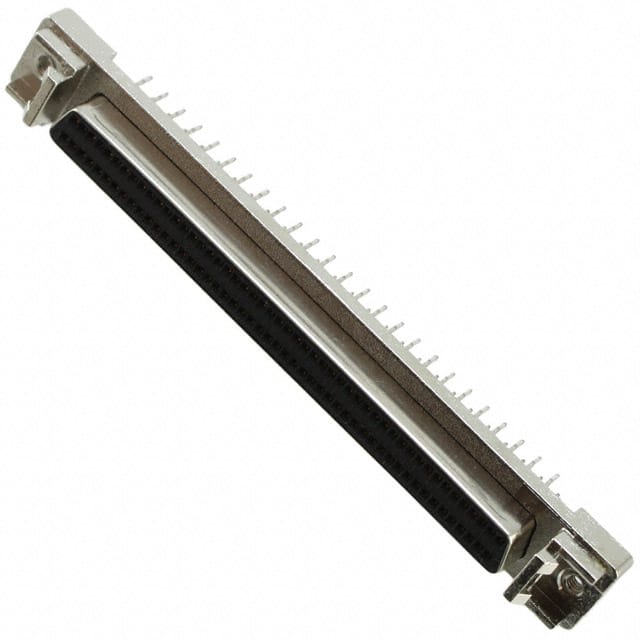

The TE Connectivity 786554-9 is a D-Sub receptacle connector with female sockets, designed for through hole press-fit mounting. It features 100 positions arranged in 2 rows, with a connector layout of 0.050 inch pitch by 0.100 inch row to row. The contacts are gold-plated signal contacts rated for 1 A current.
The connector has a steel shell with nickel plating and is shielded for EMI protection. The housing is made of UL94 V-0 rated material, ensuring flame retardancy. The flange feature includes housing/shell (2-56) and latchblocks/rails for secure mounting.
This connector is suitable for applications requiring high-density signal connections in a D-sub form factor. The press-fit termination provides a reliable solderless connection, ideal for automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $31.14 | $31.14 |
| 12+ | $26.46 | $26.46 |
| 30+ | $24.80 | $24.80 |
| 54+ | $23.62 | $23.62 |
| 102+ | $22.49 | $22.49 |
| 252+ | $21.08 | $21.08 |
| 378+ | $20.13 | $20.13 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 786554-9 has 100 positions arranged in 2 rows.
The current rating is 1 A per contact.
The mounting type is through hole with press-fit termination.
The connector layout is 0.050 inch pitch by 0.100 inch row to row.
Yes, the connector is shielded.
