| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination |

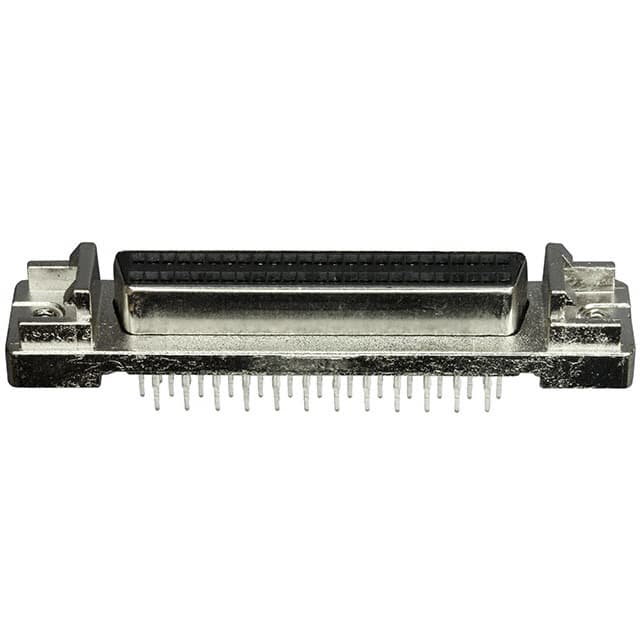

The TE Connectivity 786554-5 is a 50-position D-Sub (D-Type) receptacle connector designed for signal applications. It features a 2-row contact arrangement with a 0.050 inch contact pitch and 0.100 inch row spacing. The connector utilizes press-fit termination for solderless connection in through-hole printed circuit boards, providing reliable mechanical and electrical performance.
The connector is shielded with a steel shell that has a nickel-plated finish, offering electromagnetic interference (EMI) protection. The signal contacts are gold-plated to ensure low contact resistance and resistance to corrosion. The insulator material has a UL94 V-0 flammability rating, suitable for applications requiring flame retardance.
Each contact is rated for 1 ampere of current. The flange feature includes mounting holes for 2-56 screws and latchblocks with rails for secure mating. The connector is designed for vertical mounting orientation. RoHS and REACH compliance are unverified; please consult manufacturer documentation for regulatory status.
| Qty | Low | High |
|---|---|---|
| 10+ | $16.38 | $16.38 |
| 30+ | $16.09 | $16.09 |
| 50+ | $15.83 | $15.83 |
| 90+ | $15.54 | $15.54 |
| 630+ | $14.13 | $14.13 |
| 1,000+ | $13.00 | $13.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
50 positions arranged in 2 rows.
0.050 inch contact pitch with 0.100 inch row spacing.
1 ampere per contact.
Through hole mounting with press-fit termination.
D-Type (D-Sub) receptacle.
Gold contact finish.
Yes, the connector is shielded with a steel, nickel-plated shell.
