| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

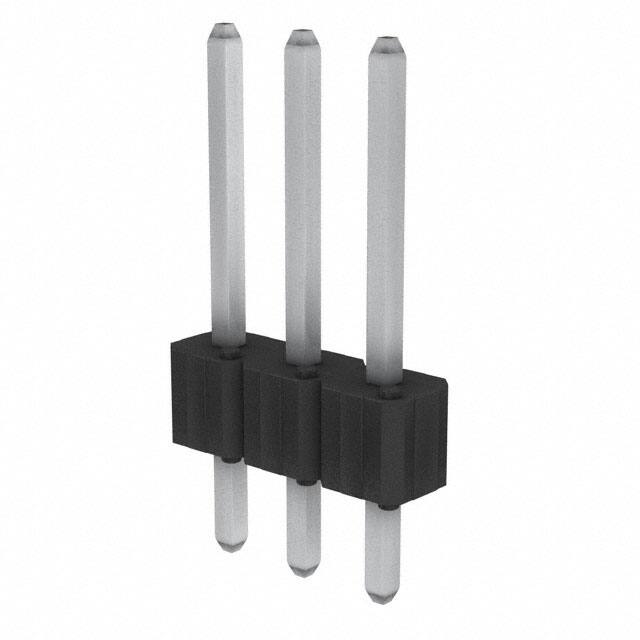

The Amphenol ICC 78511-403 is a 3-position, single row, unshrouded male pin header designed for board-to-board applications. It features a 2.54mm (0.100") pitch and an overall contact length of 13.67mm (0.538"). The header uses phosphor bronze contacts with a tin finish (100.0µin thickness) and a square contact shape for reliable connections.
This connector is through hole mounted and terminated by soldering. The black insulator is made from a UL94 V-0 rated material, ensuring flammability resistance. The push-pull fastening type allows for easy mating and unmating.
With an insulation height of 2.54mm and a contact length of 3.05mm, this header is suitable for standard board spacing. All 3 positions are loaded, providing full connectivity in a compact single-row layout.
| Qty | Low | High |
|---|---|---|
| 10,000+ | $0.42 | $0.42 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54mm (0.100").
It has 3 positions, all loaded.
Through hole mounting with solder termination.
Phosphor bronze contacts with a tin finish (100.0µin thickness).
It is unshrouded.
UL94 V-0.
