| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
40 pcs
|
40 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Board | |
| Cable Pitch | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Pitch | |
| Features | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Row Spacing | |
| Termination Style | |
| Wire Gauge |

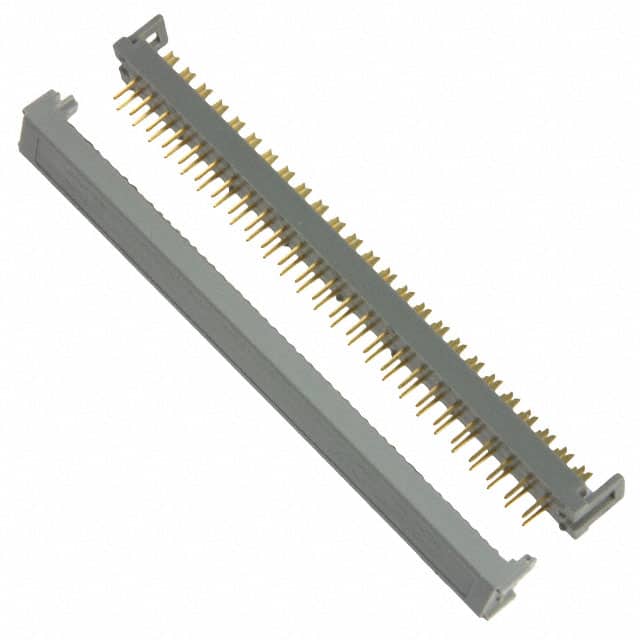

The 3M 7850-0000PR is a 50-position DIP IDC (Insulation Displacement Connector) header designed for direct wire-to-board connections. It features two rows of contacts with a row spacing of 2.54mm (0.100") and a cable pitch of 1.27mm (0.050"). The connector uses IDC termination, allowing quick and reliable connection of ribbon cable without stripping insulation.
This connector is through hole mounted and has gold flash contact finish for reliable conductivity. It accepts 26 AWG stranded, 28 AWG solid or stranded, and 30 AWG solid wire. The gray housing includes a feed through feature for pass-through wiring.
Typical applications include internal wiring in electronic equipment, computer peripherals, and industrial control systems where a compact, reliable board-to-cable interface is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.76 | $6.76 |
| 10+ | $5.97 | $5.97 |
| 20+ | $5.92 | $5.92 |
| 50+ | $5.64 | $5.64 |
| 100+ | $4.96 | $4.96 |
| 200+ | $4.76 | $4.76 |
| 500+ | $4.60 | $4.60 |
| 1,000+ | $4.55 | $4.55 |
| 2,000+ | $4.50 | $4.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It is a DIP header IDC connector for ribbon cable.
It has 50 positions arranged in 2 rows.
The contact pitch is 2.54mm (0.100").
Through hole mounting.
26 AWG stranded, 28 AWG solid or stranded, and 30 AWG solid.
IDC (Insulation Displacement Connection).
Gold flash.
