| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
60 pcs
|
60 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Ambient Temperature | |
| Automotive Grade | |
| Coplanarity | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| DC Resistance (Typical/Maximum @ @ 20 °C) | |
| Frequency | |
| Halogen Free | |
| Height | |
| Inductance | |
| Industrial Grade | |
| Length | |
| Material | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Ratings | |
| SVHC Present | |
| Shielding | |
| Storage Conditions | |
| Supplier Device Package | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

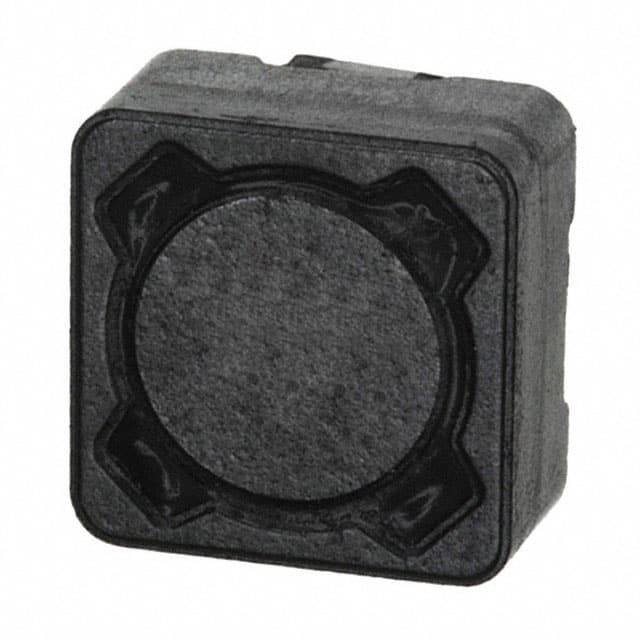

The 784771330 is a shielded power inductor from Würth Elektronik's WE-PDA series. It offers an inductance of 33 µH with ±20% tolerance and is designed for surface mount applications. The inductor features a drum core wirewound construction with a nickel zinc ferrite (NiZn) core, providing effective shielding for EMI-sensitive circuits.
Electrical characteristics include a rated current of 2.8 A maximum based on a 40 K temperature rise, and a saturation current of 2.9 A typical. The DC resistance is 52 mΩ typical and 62.5 mΩ maximum at 20°C. The self-resonant frequency is 11.5 MHz typical.
This component is AEC-Q200 Grade 1 qualified, making it suitable for automotive environments. It operates over a temperature range of -40°C to +125°C and has a moisture sensitivity level of 1 (unlimited). The inductor is packaged in a nonstandard surface mount case measuring 12.0 x 12.0 x 6.3 mm.
Typical applications include DC-DC converters, power management circuits, and EMI filtering in automotive and industrial electronics.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.44 | $2.44 |
| 10+ | $2.18 | $2.18 |
| 50+ | $2.02 | $2.02 |
| 100+ | $1.95 | $1.95 |
| 250+ | $1.87 | $1.87 |
| 500+ | $1.54 | $1.54 |
| 1,000+ | $1.53 | $1.53 |
| 2,500+ | $1.52 | $1.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 33 µH with ±20% tolerance, measured at 100 kHz/250 mV.
The rated current is 2.8 A maximum, based on a 40 K temperature rise.
The typical DC resistance is 52 mΩ, with a maximum of 62.5 mΩ at 20°C.
The typical self-resonant frequency is 11.5 MHz.
It comes in a nonstandard surface mount package, with dimensions 12.0 x 12.0 x 6.3 mm.
The operating temperature range is -40°C to +125°C.
Yes, it is AEC-Q200 Grade 1 qualified.
