| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
447 pcs
|
447 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
447 pcs
|
447 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Ambient Temperature | |
| Automotive | |
| Automotive Grade | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Halogen Free | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Ratings | |
| Saturation Current (Typical @ |ΔL/L| < 10%) | |
| Saturation Current (Typical @ |ΔL/L| < 30%) | |
| Shielding | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

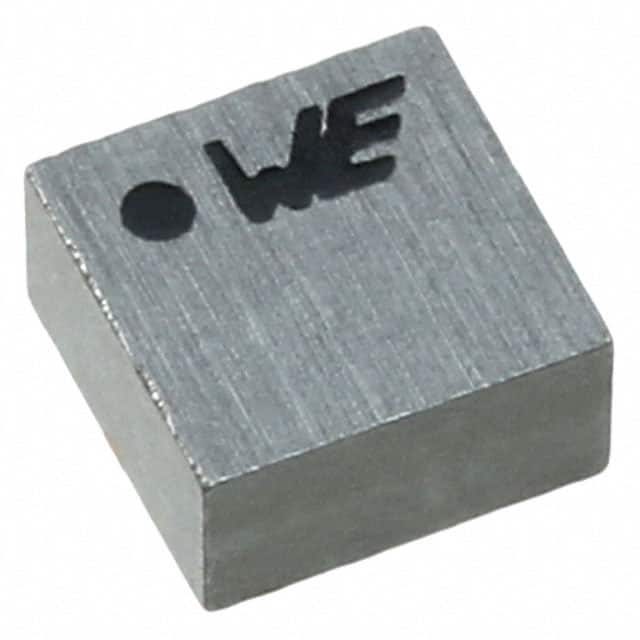

The Würth Elektronik 78438357022 is a shielded wirewound power inductor from the WE-MAIA series. It features a drum core construction with an iron alloy core, providing an inductance of 2.2 µH with ±20% tolerance. The component is rated for a continuous current of 7.1 A (ΔT = 40 K) and has a typical DC resistance of 22 mΩ, with a maximum of 26 mΩ. The saturation current is 4.6 A typical at 10% inductance drop and 9.2 A typical at 30% drop. The self-resonant frequency is 35 MHz typical.
This inductor is designed for surface mount assembly in a nonstandard 4030 package (4.1 mm x 4.1 mm x 3.1 mm max). It is qualified to AEC-Q200 Grade 1, making it suitable for automotive electronics. The operating temperature range is -40°C to +125°C, with ambient temperature up to +85°C for rated current. The component is RoHS compliant, REACH conform, and halogen free.
Typical applications include DC-DC converters, power supply filtering, and EMI suppression in automotive and industrial systems. The shielded construction minimizes electromagnetic interference. The wirewound technology ensures high current handling and low core losses.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.93 | $1.93 |
| 10+ | $1.90 | $1.90 |
| 50+ | $1.81 | $1.81 |
| 100+ | $1.67 | $1.67 |
| 700+ | $1.25 | $1.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2.2 µH at 100 kHz/10 mA.
7.1 A maximum at ΔT = 40 K per IEC 62024-2 Class C.
22 mΩ typical, 26 mΩ maximum at 20°C.
35 MHz typical.
Nonstandard 4030 SMD package, 4.1 mm x 4.1 mm x 3.1 mm max.
Yes, it is shielded.
Yes, it is AEC-Q200 Grade 1 qualified.
