| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Board | |
| Cable Pitch | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Termination Style | |
| Wire Gauge |

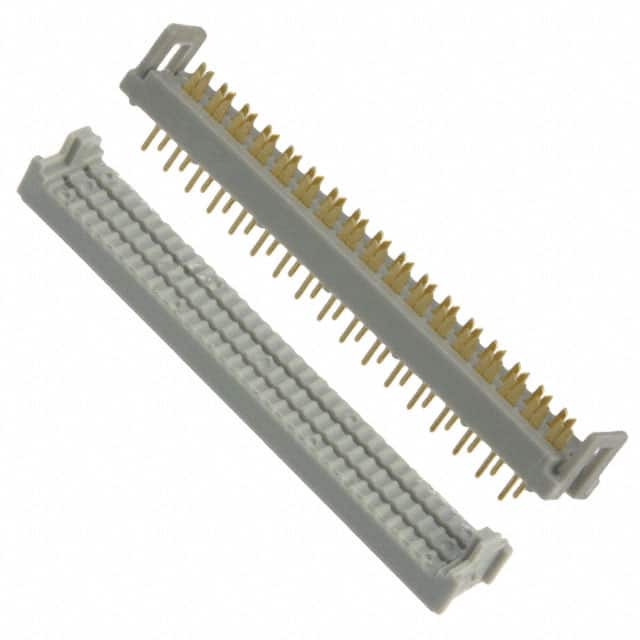

The 3M 7834-0000PR is a 34-position, 2-row IDC DIP header connector designed for direct wire-to-board applications. It features a 0.100" (2.54mm) pitch and a through-hole mounting style with solder termination. The connector accepts 26 AWG stranded, 28 AWG solid or stranded, and 30 AWG solid wire. It is terminated via IDC (Insulation Displacement Connection) and has a gray color. The connector includes a feed through feature and provides gold flash contact finish. This component is suitable for use in rectangular connector applications and is RoHS3 compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.59 | $5.59 |
| 10+ | $4.75 | $4.75 |
| 100+ | $4.03 | $4.03 |
| 500+ | $3.60 | $3.60 |
| 1,000+ | $3.43 | $3.43 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pin pitch is 0.100" (2.54mm) and the row spacing is also 0.100" (2.54mm).
It has 34 positions arranged in 2 rows.
Through-Hole mounting with solder termination.
Gold flash contact finish is used on the contacts.
26 AWG stranded, 28 AWG solid or stranded, and 30 AWG solid wire.
