| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Termination | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Storage Temperature | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

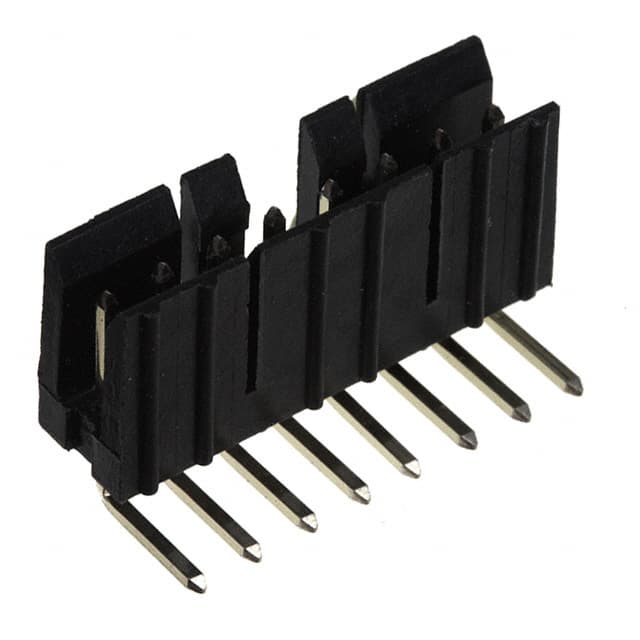

The Amphenol ICC 78208-108HLF is a header connector designed for board-to-cable/wire applications. It features a right-angle, through-hole mounting style with 8 positions arranged in a single row. The connector has a pitch of 2.54mm (0.100 inches).
Key mechanical specifications include solder contact termination made from phosphor bronze with a gold or GXT™ finish, and a contact length of 5.84mm. The insulation material is Polycyclohexylenedimethylene Terephthalate (PCT) with glass filling, colored black, and has an insulation height of 5.16mm. The header is shrouded with two walls and includes a keying slot for secure mating. It utilizes a friction lock fastening type and all positions are loaded.
The operating temperature range for this header is -40°C to 105°C. The material has a UL94 V-0 flammability rating, indicating good fire retardant properties. This component is suitable for various electronic applications requiring reliable board-level connections.
The 78208-108HLF header has 8 positions.
The pitch of the 78208-108HLF connector is 2.54mm (0.100").
The 78208-108HLF header uses a Through Hole, Right Angle mounting type.
The contact termination style for the 78208-108HLF is Solder.
The operating temperature range is -40°C to 105°C.
