| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Storage Temperature | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

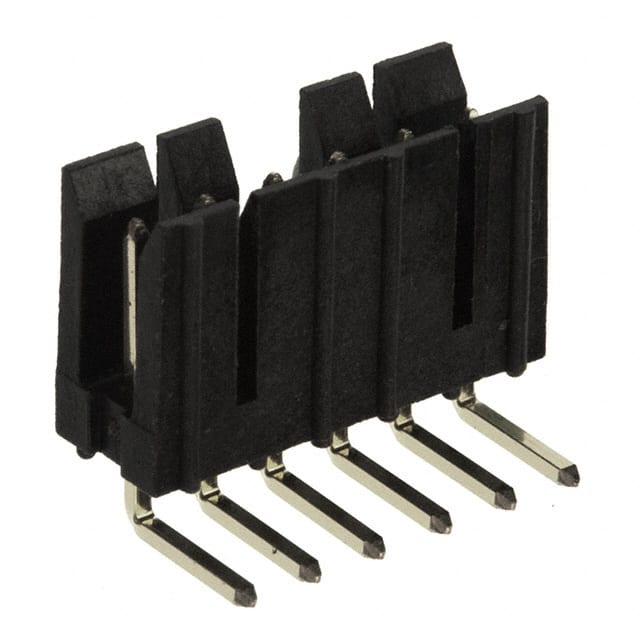

The Amphenol ICC 78208-106HLF is a header component designed for board-to-cable or wire applications. It features 6 positions arranged in a single row with a standard 2.54mm pitch.
This header has a right-angle mounting type suitable for through-hole PCB assembly. The contacts are made of phosphor bronze and finished with gold or Gold, GXT™ for reliable conductivity, with a contact finish thickness of 0.76µm. The insulation material is Polycyclohexylenedimethylene Terephthalate (PCT), glass-filled, in black, with an insulation height of 5.16mm.
Key mechanical features include a shrouded design with two walls, a keying slot for polarization, and a friction lock for secure mating. The operating temperature range is from -40°C to 105°C, and the material has a UL94 V-0 flammability rating. The termination style is solder.
This component is suitable for various electronic applications requiring a robust and reliable interconnect solution. Its design considerations include a specific pitch, mounting orientation, and contact material for optimal performance.
The header has 6 positions.
The pitch is 2.54mm.
The mounting type is Through Hole, Right Angle.
The contact material is Phosphor Bronze, and the finish is Gold or Gold, GXT™.
The operating temperature range is -40 to 105°C.
The material flammability rating is UL94 V-0.
