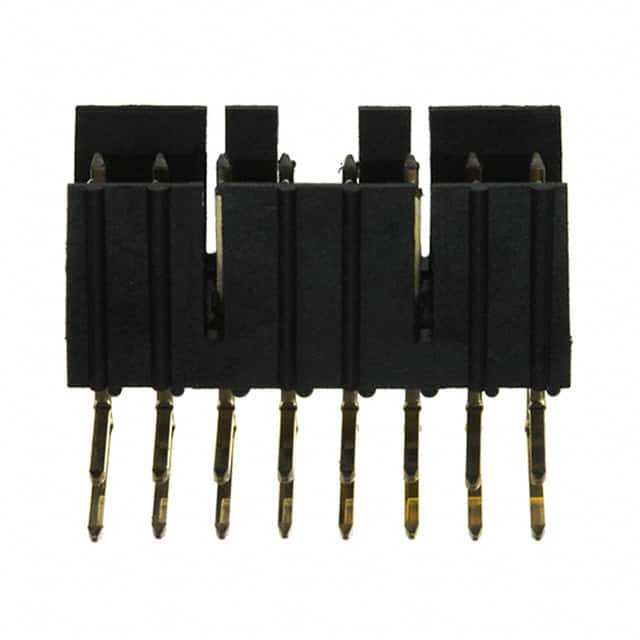

78207-116HLF Shrouded right angle header with 16 positions, 2.54mm pitch, friction lock, and gold plated phosphor bronze contacts.
Mfr Part #:

78207-116HLF

Available from 1 distributors
Mfr Name: Amphenol ICC
Amphenol ICC
Shrouded right angle header with 16 positions, 2.54mm pitch, friction lock, and gold plated phosphor bronze contacts.
✓ Total Stock: 800 pcs
$ Price Range: $1.59 - $2.50

78207-116HLF Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
800 pcs
On Request
800 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

78207-116HLF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Fastening Type
Features
Insulation Color
Insulation Height
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
View Similar Products (0)

78207-116HLF Description

Short technical summary and product information.

The 78207-116HLF from Amphenol ICC is a 2.54mm pitch shrouded header designed for board-to-cable/wire applications. It features 16 positions in a 2-row configuration with a right angle mounting style for through hole soldering. The header includes a friction lock fastening system and a keying slot for secure and accurate mating.



The contacts are made of phosphor bronze with a gold or gold GXT finish of 30µin (0.76µm), ensuring reliable signal integrity and corrosion resistance. The insulator is black UL94 V-0 rated thermoplastic with an insulation height of 7.70mm. All 16 positions are loaded.

78207-116HLF Quick Information

Product Type: Header, Male Pins
Series: 78207
Canonical Name: 78207-116HLF Amphenol ICC Shrouded Header, Male Pins, Right Angle, 16 Position, 2.54mm Pitch
Subcategory: Shrouded Header, Right Angle

78207-116HLF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

78207-116HLF Estimated Pricing

Qty Low High
1+ $2.50 $2.50
10+ $2.33 $2.33
100+ $1.98 $1.98
250+ $1.97 $1.97
500+ $1.70 $1.70
800+ $1.62 $1.62
2,400+ $1.60 $1.60
5,600+ $1.59 $1.59

Estimated market price range - modelled values for guidance only, not live distributor offers.

78207-116HLF Features

  • 2.54mm pitch, 2-row right angle header.
  • Shrouded with 2-wall and friction lock.
  • Gold or gold GXT plated phosphor bronze contacts.
  • UL94 V-0 black thermoplastic insulator.
  • Includes keying slot for polarization.

78207-116HLF Applications

  • Board-to-cable wire harness connections.
  • Internal power and signal distribution.
  • Industrial control and automation equipment.
  • Consumer electronics with locking connectors.
  • Data and telecommunications backplanes.

78207-116HLF FAQs

7 frequently asked questions generated from this part’s specifications.
What is the connector type and mounting style?

It is a through hole, right angle shrouded header (male pins).

How many pins does the 78207-116HLF have?

It has 16 positions (pins) in 2 rows.

What is the pitch (pin spacing)?

The pitch is 2.54mm (0.100") and the row spacing is also 2.54mm (0.100").

What locking feature does this header have?

It has a friction lock fastening type.

What is the contact material and finish?

Contacts are phosphor bronze with a gold or gold GXT finish of 30µin (0.76µm).

Is the header shrouded?

Yes, it is a 2-wall shrouded header.

What is the flammability rating of the insulator?

The material has a UL94 V-0 rating.
