| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
53 pcs
|
53 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination |

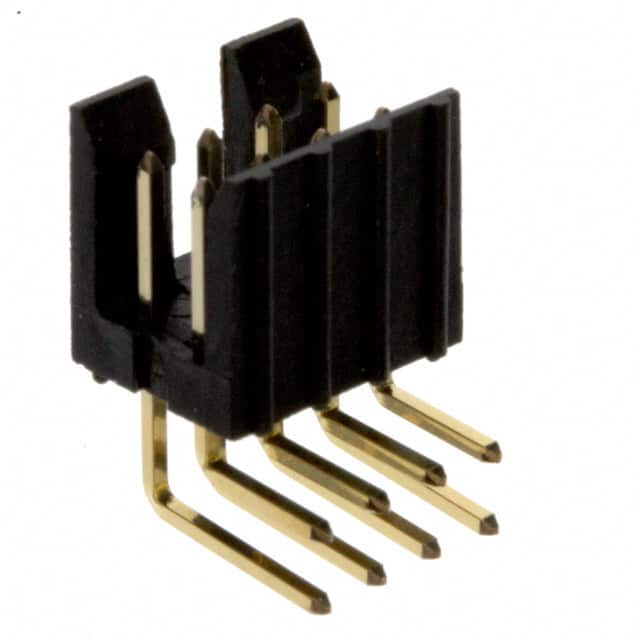

The 78207-108HLF is an 8-position, 2-row shrouded header from Amphenol ICC designed for board-to-cable/wire applications. It features a 2.54mm pitch and 2.54mm row spacing, with a right angle through hole mounting style for solder termination. The connector uses phosphor bronze male square pins with a gold or GXT contact finish of 30.0µin (0.76µm).
The header includes a shrouded 2-wall design with a friction lock fastening system for secure mating. A keying slot is provided for polarization to prevent misalignment. The black insulator has a height of 7.70mm and a flammability rating of UL94 V-0. The contact length is 5.84mm.
This connector is suitable for applications requiring a reliable, polarized connection between a PCB and a cable or wire harness. The right angle orientation allows for low-profile board edge connections.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.71 | $1.71 |
| 10+ | $1.48 | $1.48 |
| 25+ | $1.44 | $1.44 |
| 100+ | $1.33 | $1.33 |
| 250+ | $1.25 | $1.25 |
| 500+ | $1.16 | $1.16 |
| 1,000+ | $1.07 | $1.07 |
| 2,000+ | $1.04 | $1.04 |
| 5,000+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54mm (0.100").
It has 8 positions, all loaded, in 2 rows.
Through hole, right angle with solder termination.
Gold or Gold, GXT™ with a thickness of 30.0µin (0.76µm).
Yes, it has a shrouded 2-wall design with a friction lock.
UL94 V-0.
