| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Level | |
| Actuator Type | |
| Circuit | |
| Contact Resistance | |
| Current Rating (Amps) | |
| Height Above Board | |
| Insulation Resistance | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Tape & Reel | |
| Termination Style | |
| Voltage Rating | |
| Washable |

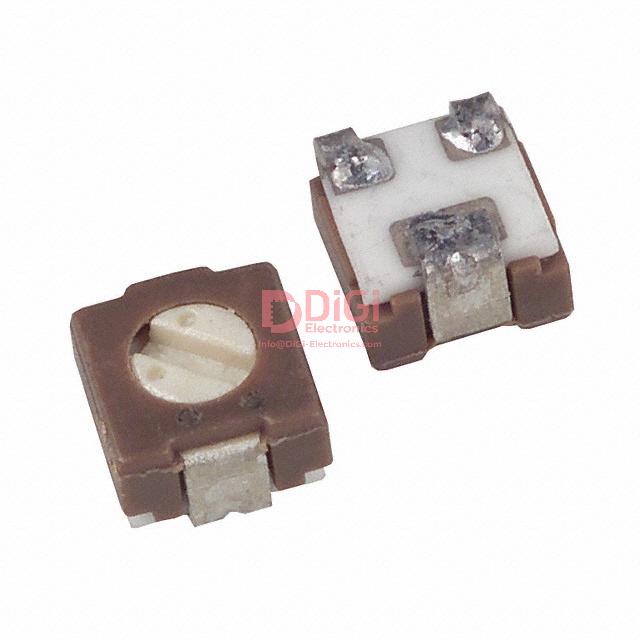

The Bourns 7813J-1-023E is a Single Pole Double Throw (SPDT) rotary DIP switch. It is designed for compatibility with most surface mount manufacturing processes and features a compact 3 mm square sealed design.
This switch operates with a maximum current rating of 100 mA and a maximum voltage rating of 16V. It offers 2 positions and a rotational life of up to 2000 cycles. The operating temperature range is -55°C to +125°C, making it suitable for various environmental conditions.
Designed for surface mounting, the 7813J-1-023E has a height above board of 2.20mm and a termination style of J Lead. It is packaged in tape and reel for automated assembly processes. The switch is RoHS3 compliant and has an MSL rating of 1.
Key electrical characteristics include a contact resistance of 2 ohms maximum and an insulation resistance of 100 megohms minimum. The dielectric strength is 250 VAC. Mechanical specifications include an adjustment torque of 0.5 N-cm maximum and a stop strength of 1.8 N-cm minimum.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -55°C to +125°C.
The switch has a maximum current rating of 100 mA and a maximum voltage rating of 16V.
It has 2 positions.
The mechanical life is rated for 2000 cycles.
No, this switch is not washable.
