| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
215 pcs
|
215 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Resistance | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Features | |
| Flange Feature | |
| Gender | |
| Ingress Protection | |
| Insulation Resistance | |
| Insulator Material | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature (Minimum/Maximum) | |
| SVHC Present | |
| Shell Finish | |
| Shell Material | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Storage Temperature | |
| Tape & Reel | |
| Termination | |
| Termination Style |

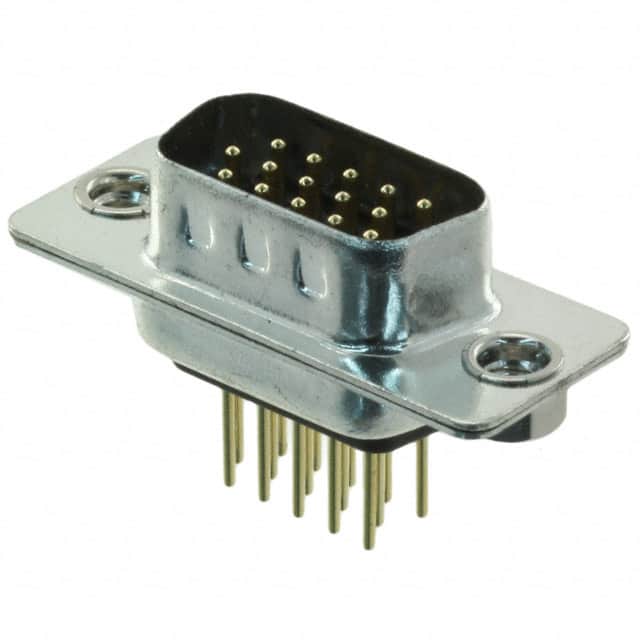

The NorComp Inc. 780-M15-113R011 is a high density D-Sub plug connector with 15 male pins arranged in 3 rows. It is designed for panel mount applications and features through-hole solder termination with a vertical DIP lead style.
Electrical specifications include a maximum current rating of 3A per contact, maximum contact resistance of 10 mΩ, minimum dielectric withstanding voltage of 1000 VAC, and minimum insulation resistance of 5 GΩ. The operating temperature range is -55°C to +125°C.
The connector is built with a steel shell finished in nickel, a PA9T insulator rated UL94 V-0, and brass contacts with gold flash plating. It meets IP67 standards for dust tight and waterproof sealing, making it suitable for harsh environments. The flange feature is board side (4-40).
| Qty | Low | High |
|---|---|---|
| 1+ | $10.16 | $10.16 |
| 10+ | $8.64 | $8.64 |
| 25+ | $7.89 | $7.89 |
| 36+ | $7.50 | $7.50 |
| 108+ | $7.29 | $7.29 |
| 252+ | $6.87 | $6.87 |
| 504+ | $6.54 | $6.54 |
| 1,008+ | $6.23 | $6.23 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum current rating is 3A per contact.
Yes, it has an IP67 ingress protection rating, meaning it is dust tight and waterproof.
The operating temperature range is -55°C to +125°C.
It is panel mount with through-hole solder termination.
The shell is steel with a nickel finish.
Contacts are brass with gold flash plating.
Yes, the datasheet states it is RoHS compliant.
