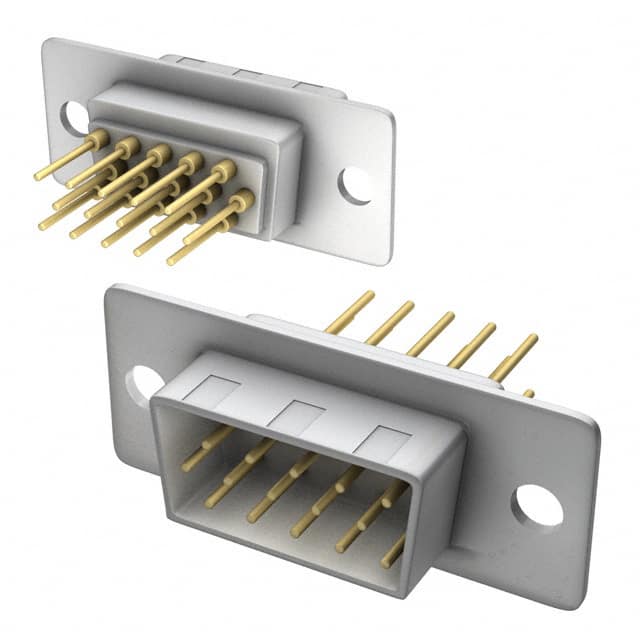

The NorComp Inc. 780-M15-113R001 is a 15-position high density D-Sub plug connector with male pins. It features a steel shell with nickel plating and a PA9T insulator rated UL94 V-0. The contacts are brass with gold flash plating and are rated for 3 A maximum with a contact resistance of 10 mOhm maximum. The connector is designed for panel mount through hole vertical DIP solder termination.
This connector meets IP67 standards for dust tight and waterproof protection. It has a dielectric withstanding voltage of 1000 VAC minimum and insulation resistance of 5 GOhm minimum. The operating temperature range is -55°C to +125°C. The shell includes grounding indents and the flange feature is housing/shell unthreaded.
The part number 780-M15-113R001 indicates the 780-M series with machined contacts, 15 positions, male gender, vertical DIP termination, nickel shell plating, no hardware, and gold flash contact plating.
| Qty | Low | High |
|---|---|---|
| 1+ | $10.55 | $10.55 |
| 10+ | $9.49 | $9.49 |
| 25+ | $8.95 | $8.95 |
| 50+ | $8.72 | $8.72 |
| 110+ | $8.49 | $8.49 |
| 220+ | $6.57 | $6.57 |
| 550+ | $6.33 | $6.33 |
| 1,100+ | $6.03 | $6.03 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
15 positions.
The contact current rating is 3 A maximum.
Panel mount, through hole with solder termination (vertical DIP).
Yes, IP67 - dust tight and waterproof.
-55°C to +125°C.
Steel shell with nickel plating.
Yes, the datasheet states RoHS compliant.
