| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Dimensions | |
| Efficiency | |
| Form | |
| Frequency | |
| Height | |
| Input Type | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power | |
| Power (Watts) | |
| Region Utilized | |
| Storage Temperature | |
| Voltage | |
| Weight | |
| Width |

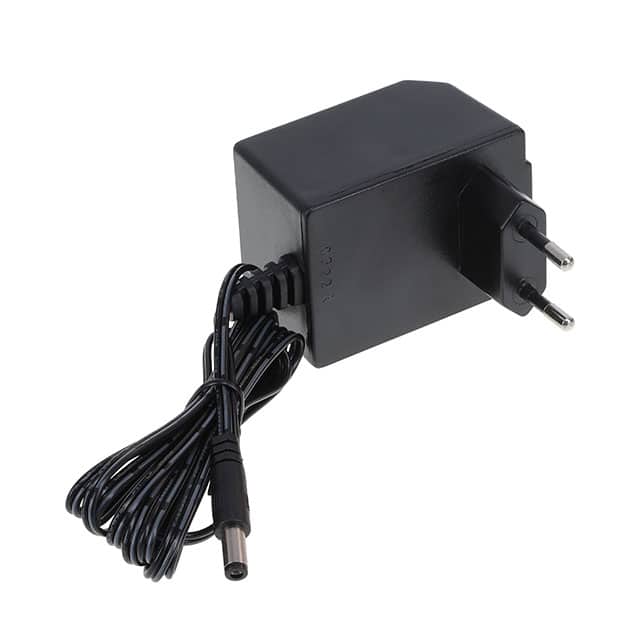

The Ideal Power Ltd. 77DE-06-09 is a wall-mount AC to AC adapter designed for various applications requiring a stable 9Vac output. It accepts a standard 230Vac input at 50Hz and delivers a 6VA power rating.
Key electrical specifications include an output current of 0.67A and an efficiency of 90%. The adapter operates within an ambient temperature range of -10°C to 40°C and a storage temperature range of -20°C to 70°C.
Mechanically, the unit measures 66.5mm x 48.5mm x 40.0mm and weighs 265g. It features a fixed blade input type and is designed for fixed blade input.
This adapter is approved by CE, GS, NEMKO, and TUV, indicating compliance with relevant safety and quality standards. It is suitable for ITE (Commercial) applications and is utilized in Europe.
The input voltage is 230Vac.
The output voltage is 9Vac and the power rating is 6VA.
The operating temperature range is -10°C to 40°C.
The dimensions are 66.5mm x 48.5mm x 40.0mm.
It is approved by CE, GS, NEMKO, and TUV.
The RoHS status is RoHS3 Compliant.
