| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Form | |
| Height | |
| Input Type | |
| Lead Style | |
| Length | |
| Operating Temperature | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

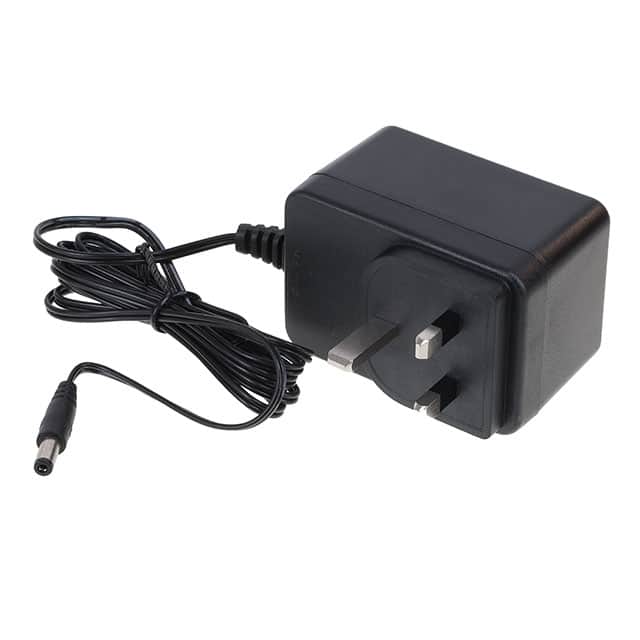

The Ideal Power Ltd. 77DB-12-24 is an AC AC Wall Adapter designed for ITE (Commercial) applications, specifically utilized in the United Kingdom. This unit provides a stable 24VAC output with a power capacity of 12VA.
Key electrical specifications include an input type of Fixed Blade, an output voltage of 24VAC, and a current rating of 0.5A, resulting in a total power of 12W. The adapter operates within a temperature range of 0°C to 40°C.
Mechanically, the adapter has dimensions of 82.0mm in length, 58.0mm in width, and 55.0mm in height. It is presented in a Wall Mount form factor, making it suitable for direct integration into electrical outlets.
Compliance certifications include CE, GS, and TUV. RoHS and REACH compliance are noted as unverified.
The operating voltage is 24VAC.
The power rating is 12W.
The operating temperature range is 0°C to 40°C.
It has a Fixed Blade input type.
The dimensions are 82.0mm (L) x 58.0mm (W) x 55.0mm (H).
The packaging form is Wall Mount.
The RoHS status is listed as RoHS3 Compliant, but this value is unverified.
