| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
22 pcs
|
22 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Amps) | |
| Features | |
| Mounting Type | |
| Number of Pins | |
| Screw Material | |
| Screw Size | |
| Tape & Reel | |
| Terminal Material | |
| Terminal Type | |
| Termination | |
| Termination Style |

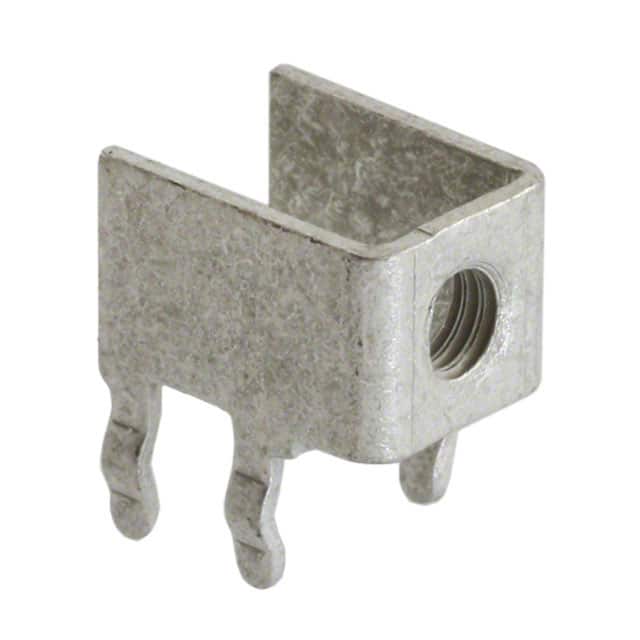

The Keystone 7792 is a screw terminal designed for PCB mounting with a right-angle configuration. It features four pins with M4 screw threads, providing a secure connection for power distribution. The terminal is rated for 15 amps and uses brass terminals with matte tin plate finish.
The screw is made of brass with nickel plate, and the terminal includes a snap-fit mounting design with six legs for stability, as noted in the datasheet. The screw is not included with the part. The terminal material is .80 brass with matte tin plate.
This component is suitable for applications requiring a compact, heavy-duty screw terminal for PCB integration. The right-angle orientation allows for efficient board layout. The snap-fit legs ensure secure attachment to the PCB.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.57 | $0.57 |
| 10+ | $0.46 | $0.46 |
| 25+ | $0.44 | $0.44 |
| 100+ | $0.42 | $0.42 |
| 1,000+ | $0.29 | $0.29 |
| 2,500+ | $0.27 | $0.27 |
| 5,000+ | $0.23 | $0.23 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
15 A.
M4.
Through hole, right angle.
4 pins.
Brass with matte tin plate.
No, screw not included.
Snap-fit.
