| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
82 pcs
|
82 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current Rating (Amps) | |
| Features | |
| Halogen Free | |
| Industrial Grade | |
| Lead Style | |
| Material - Screw | |
| Material - Terminal | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Pins | |
| SVHC Present | |
| Screw Size | |
| Tape & Reel | |
| Terminal Type | |
| Termination | |
| Wire Gauge |

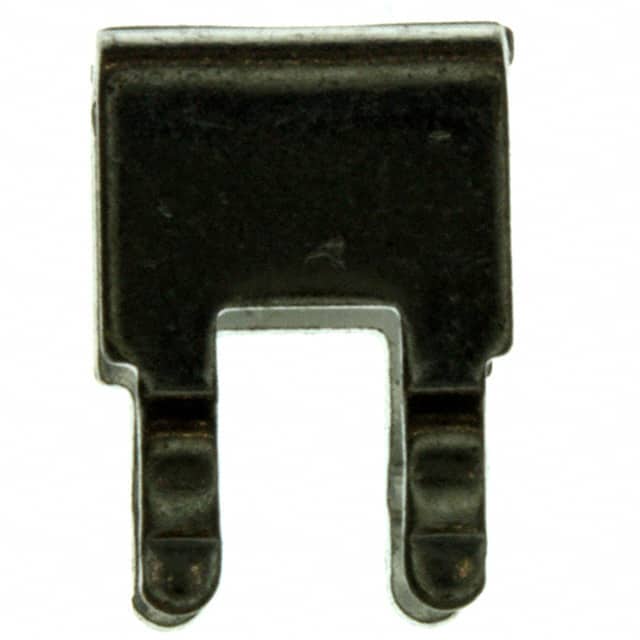

The Keystone Electronics 7780 is a low-profile screw terminal designed for easy mounting and reliable connections. It features a stable, no-rock design with an anti-rotational feature, making it ideal for high-density packaging. The terminal accepts 14-22 AWG solid or stranded wire, as well as crimp terminals or lugs.
Rated at 15 Amps, the 7780 uses a brass terminal with matte tin plate and a brass binding head screw with nickel plate. The screw size is 6-32. The part is supplied without the screw (screw not included). Mounting is through hole with snap-fit legs that fit into pre-drilled or punched holes.
This terminal is suitable for PC board testing, power distribution, and general interconnection in control panels and instrumentation. Its low profile and space-saving design allow for dense placement on PCBs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.53 | $0.53 |
| 10+ | $0.47 | $0.47 |
| 25+ | $0.46 | $0.46 |
| 100+ | $0.44 | $0.44 |
| 1,000+ | $0.27 | $0.27 |
| 2,500+ | $0.25 | $0.25 |
| 5,000+ | $0.23 | $0.23 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
15 A.
4 positions.
Through hole with snap-fit legs.
14-22 AWG.
6-32.
Brass terminal with tin plate, brass screw with nickel plate.
No, screw not included.
