| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,479 pcs
|
6479 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Color | |
| Connector System | |
| Connector Type | |
| Contact Size | |
| Contact Termination | |
| Contact Type | |
| Fastening Type | |
| Housing Material | |
| Mating Alignment Type | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| Operating Voltage | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| UL Flammability Rating |

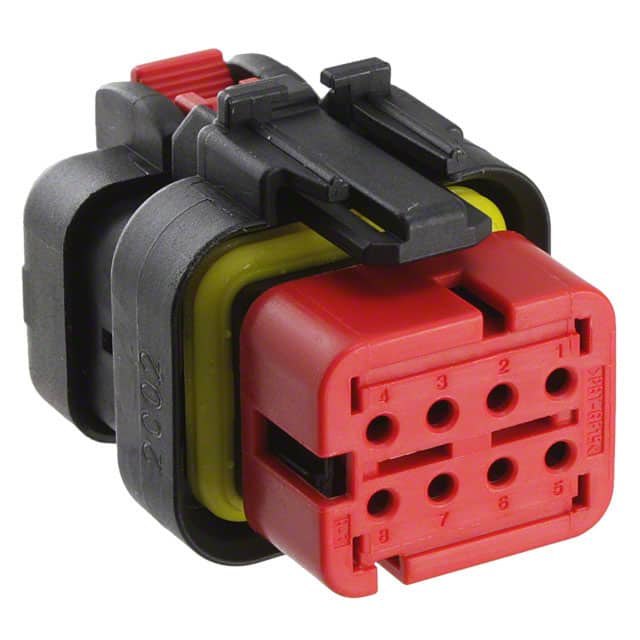

The TE Connectivity AMPSEAL 16 776494-1 is a rectangular plug housing designed for wire-to-wire applications. It accommodates 8 female socket terminals in a 2-row configuration with a 4.5mm centerline pitch and 5.3mm row spacing. The housing is sealable to IP67 and features an integrated latch lock for secure mating.
This free-hanging (cable mount) housing is made of red PBT GF material with a UL 94HB flammability rating. It supports crimp termination and includes terminal position assurance (TPA) and connector position assurance (CPA) features. The keyed mating alignment prevents incorrect insertion.
Electrical ratings include a maximum contact current of 13A and an operating voltage of 250VDC. The housing is compatible with multiple nominal voltage architectures from 12V to 240V. It operates over a temperature range of -40°C to 125°C.
The 776494-1 is part of the AMPSEAL 16 series and is supplied in packages of 19 pieces. It is compliant with RoHS, REACH, ELV, and China RoHS directives.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.84 | $4.84 |
| 10+ | $4.41 | $4.41 |
| 19+ | $4.17 | $4.17 |
| 114+ | $3.88 | $3.88 |
| 266+ | $3.40 | $3.40 |
| 513+ | $3.30 | $3.30 |
| 1,007+ | $2.83 | $2.83 |
| 2,508+ | $2.65 | $2.65 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The housing has 8 positions arranged in 2 rows.
The centerline pitch is 4.5 mm (0.177 in).
The maximum contact current rating is 13 A.
The operating voltage is 250 VDC.
It is a free-hanging (in-line) cable mount connector.
Yes, it is sealable with an IP67 degree of protection.
The operating temperature range is -40°C to 125°C.
