| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,935 pcs
|
5935 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Material | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

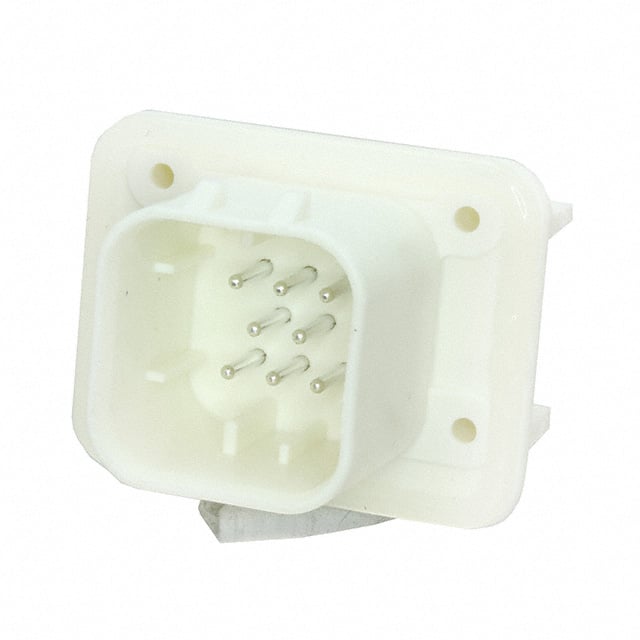

The TE Connectivity 776280-2 is a board-to-cable/wire header connector featuring 8 male pin contacts arranged in 3 rows with a 4.00mm pitch and row spacing of 4.00mm. It is designed for panel mount, through hole, right angle mounting with solder termination. The connector is fully shrouded with 4 walls and uses a locking ramp for secure fastening. Contacts are made of brass with a tin finish, and the insulator is glass-filled PBT in natural color. The operating temperature range is -40°C to 105°C. This header is suitable for applications requiring a robust, sealed connection.
| Qty | Low | High |
|---|---|---|
| 1+ | $9.83 | $9.83 |
| 25+ | $7.64 | $7.64 |
| 36+ | $7.63 | $7.63 |
| 108+ | $7.07 | $7.07 |
| 252+ | $7.06 | $7.06 |
| 504+ | $6.33 | $6.33 |
| 1,008+ | $6.03 | $6.03 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The header has 8 positions loaded.
The pitch is 4.00mm (0.157 inches).
The voltage rating is 250VAC.
The connector uses panel mount, through hole, right angle mounting.
The operating temperature range is -40°C to 105°C.
