| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,374 pcs
|
9374 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Material | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

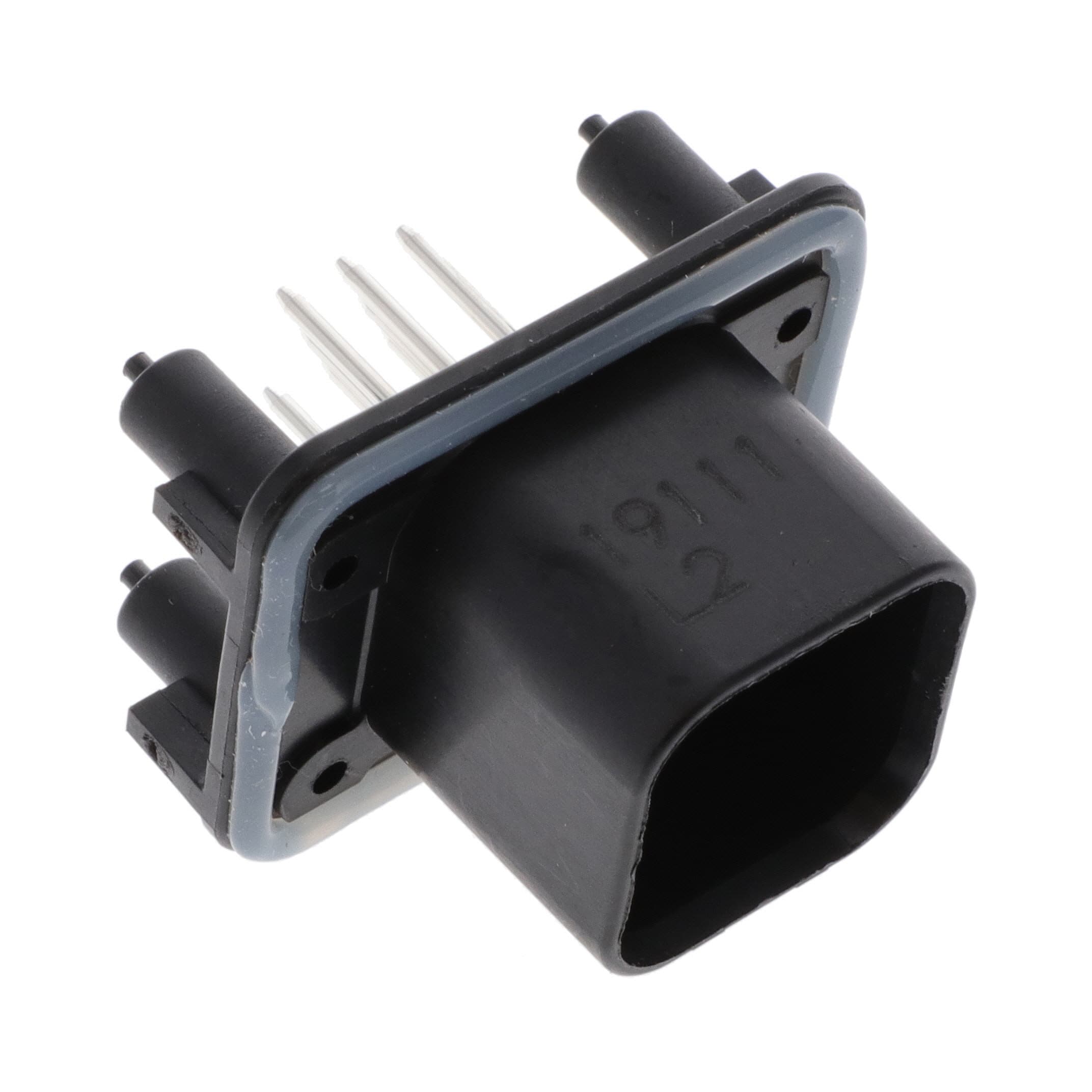

The TE Connectivity 776276-1 is a rectangular connector header designed for board-to-cable/wire applications. It has 8 male pin contacts arranged in 3 rows with a 4.00mm pitch and row spacing of 4.00mm. The connector is fully shrouded with 4 walls and features a locking ramp for secure mating.
The header is rated for 250VAC operation with current rating varying by wire gauge. It is housed in a black, glass-filled PBT insulation material and uses brass contacts with a tin finish. The operating temperature range is -40°C to 105°C.
Mounting options include panel mounting with a flange and through hole solder termination. The connector includes a sealing feature for environmental protection. This part is RoHS3 compliant and REACH unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $9.83 | $9.83 |
| 10+ | $9.22 | $9.22 |
| 25+ | $6.86 | $6.86 |
| 36+ | $6.77 | $6.77 |
| 108+ | $6.51 | $6.51 |
| 252+ | $5.61 | $5.61 |
| 504+ | $5.35 | $5.35 |
| 1,008+ | $5.24 | $5.24 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 4.00mm (0.157 inches).
It has 8 positions, all loaded, arranged in 3 rows.
The voltage rating is 250VAC.
It uses panel mount and through hole mounting with solder termination.
The operating temperature range is -40°C to 105°C.
Yes, it has a mounting flange and is designed for panel mount.
The contact material is brass with a tin finish.
