| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,785 pcs
|
7785 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Material | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

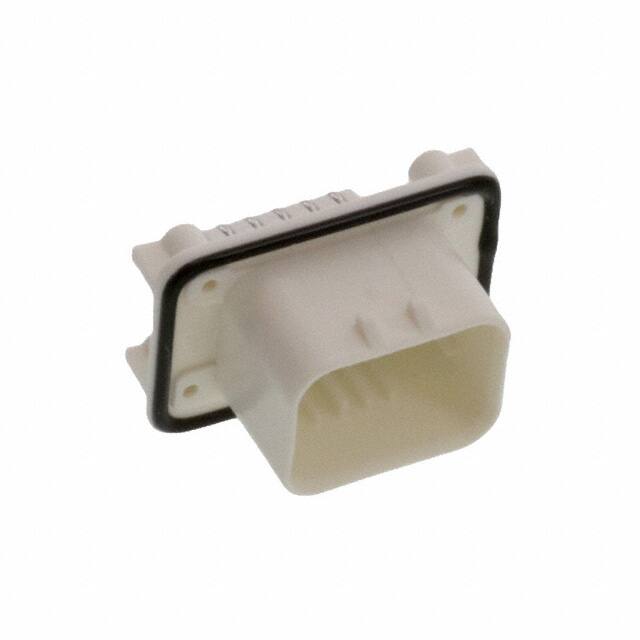

The TE Connectivity 776267-2 is a 14-position header connector designed for board-to-cable/wire applications. It has male pin contacts arranged in 3 rows with a 4.00mm pitch (0.157") and row spacing of 4.00mm (0.157"). The connector features a shrouded 4-wall design for pin protection and a locking ramp fastening system for secure mating.
This header supports panel mount and through-hole mounting with right-angle orientation. Termination is via solder. The housing is made of glass-filled polybutylene terephthalate (PBT) in natural color. Contacts are brass with a tin finish.
The connector is rated for 250VAC and has an operating temperature range of -40°C to 105°C. Included features are board guide and sealing for environmental protection. It supports current handling that varies by wire gauge.
| Qty | Low | High |
|---|---|---|
| 1+ | $10.92 | $10.92 |
| 10+ | $10.26 | $10.26 |
| 25+ | $8.52 | $8.52 |
| 36+ | $8.51 | $8.51 |
| 108+ | $7.87 | $7.87 |
| 252+ | $7.24 | $7.24 |
| 504+ | $6.79 | $6.79 |
| 1,008+ | $6.47 | $6.47 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 4.00mm (0.157").
It has 14 positions, all loaded.
The voltage rating is 250VAC.
It uses panel mount and through-hole mounting with right-angle orientation.
The operating temperature range is -40°C to 105°C.
RoHS3 compliant status is indicated but unverified (low confidence).
