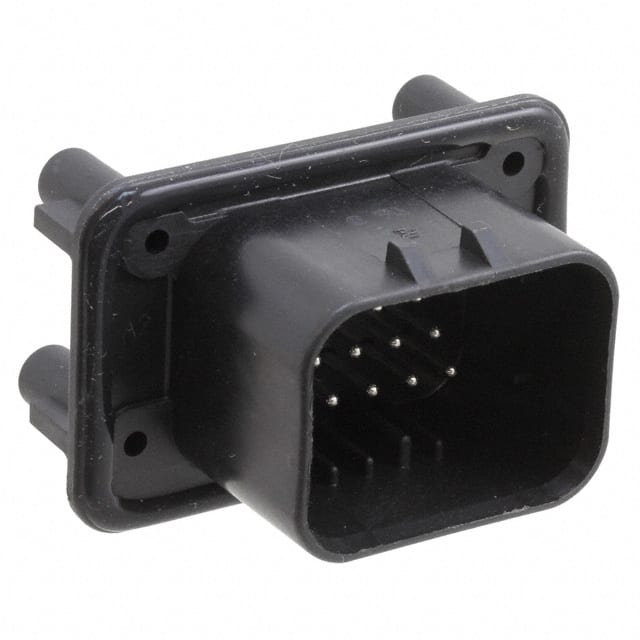

776262-1 14 position, 3 row, 4.00mm pitch shrouded header with male pins, panel mount, through hole, solder termination, tin contacts.
Mfr Part #:

776262-1

Available from 2 distributors
Mfr Name: TE Connectivity
TE Connectivity
14 position, 3 row, 4.00mm pitch shrouded header with male pins, panel mount, through hole, solder termination, tin contacts.
✓ Total Stock: 3,083 pcs
$ Price Range: $5.81 - $9.52

776262-1 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
3,000 pcs
On Request
3000 pcs On Request 1 On Request On Request On Request On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
83 pcs
On Request
83 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

776262-1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Material
Contact Shape
Contact Type
Current Rating
Current Rating (Amps)
Fastening Type
Features
Industrial Grade
Insulation Color
Insulation Material
Lead Spacing
Lead Style
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Termination
Voltage Rating
View Similar Products (0)

776262-1 Description

Short technical summary and product information.

The TE Connectivity 776262-1 is a 14-position, 3-row header connector designed for board-to-cable/wire applications. It features a 4.00mm pitch and 4.00mm row spacing, with a shrouded 4-wall design for enhanced durability. The connector is panel mount and through hole, with solder termination. Contact material is brass with tin finish, and insulation is black glass-filled PBT. The header includes a locking ramp fastening mechanism and a mounting flange for secure attachment. It is rated for 250VAC and has an operating temperature range of -40°C to 105°C. The contacts are circular and all positions are loaded. This connector is suitable for applications requiring a sealed, reliable interconnection.

776262-1 Quick Information

Product Type: Header, Male Pins
Series: 1-1773950-7
Canonical Name: Header, Male Pins, 14 Position, 4.00mm Pitch, 3 Row, Shrouded, Panel Mount, Through Hole, Solder, Tin
Subcategory: Male Pins

776262-1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: Non-Compliant

776262-1 Estimated Pricing

Qty Low High
1+ $9.52 $9.52
10+ $8.09 $8.09
25+ $7.58 $7.58
50+ $7.22 $7.22
180+ $6.60 $6.60
360+ $6.28 $6.28
540+ $6.11 $6.11
1,080+ $5.81 $5.81

Estimated market price range - modelled values for guidance only, not live distributor offers.

776262-1 Features

  • 14 position, 3 row, 4.00mm pitch header.
  • Shrouded 4-wall design with locking ramp.
  • Panel mount, through hole, solder termination.
  • Brass contacts with tin finish.
  • Rated for 250VAC operation.

776262-1 Applications

  • Board-to-cable/wire interconnection applications.
  • Industrial control and automation systems.
  • Automotive interior electronics.
  • Requires sealed connector for harsh environments.

776262-1 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 776262-1 have?

14 positions.

What is the pitch of the 776262-1?

4.00mm (0.157 inches).

What is the current rating of the 776262-1?

The current rating varies by the wire gauge used.

What is the voltage rating of the 776262-1?

250VAC.

What is the mounting type for the 776262-1?

Panel Mount, Through Hole.

What is the operating temperature range of the 776262-1?

-40°C to 105°C.

What is the contact finish on the 776262-1?

Tin.
