| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,080 pcs
|
1080 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

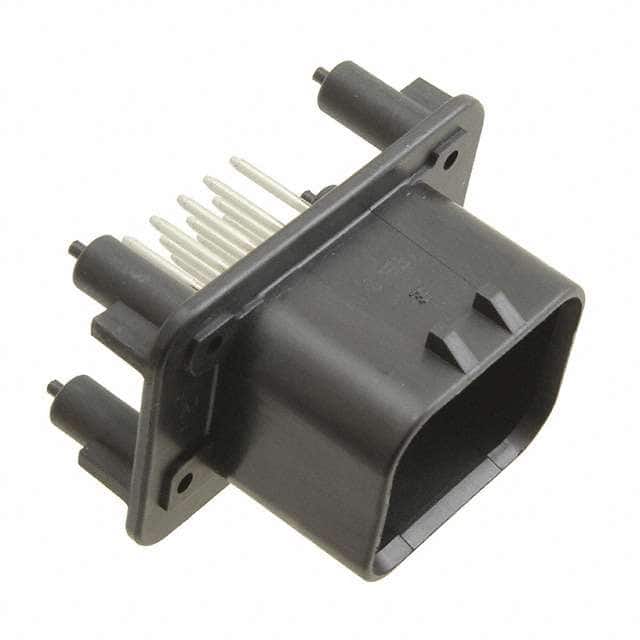

The TE Connectivity 776261-1 is a 14-position header connector designed for board-to-cable/wire applications. It features a 4.00mm pitch and 3 rows of male pin contacts.
The connector is shrouded with 4 walls for protection and includes a locking ramp for secure mating. It is rated for 250VAC and has an operating temperature range of -40°C to 105°C. The contact material is brass with tin finish.
The connector is panel mount with through-hole solder termination. The insulation is black PBT glass-filled material. It features a mounting flange for secure attachment and is sealable.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.52 | $8.52 |
| 36+ | $6.62 | $6.62 |
| 108+ | $6.12 | $6.12 |
| 504+ | $5.49 | $5.49 |
| 1,008+ | $5.23 | $5.23 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
14 positions.
4.00mm (0.157").
250VAC.
Panel Mount, Through Hole.
-40°C to 105°C.
Locking Ramp.
Yes, it has a shrouded 4-wall design.
