| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
583 pcs
|
583 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

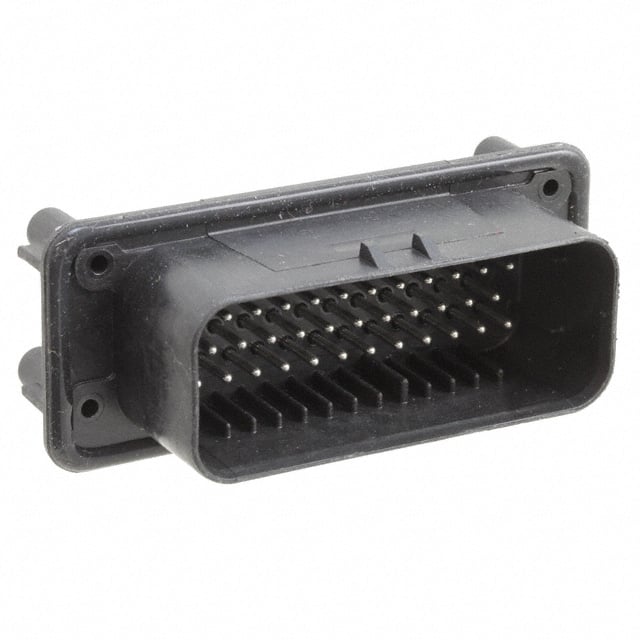

The TE Connectivity 776231-1 is a 35-position, 3-row header connector designed for board-to-cable/wire applications. It features a 4.00mm pitch and row spacing, with a shrouded 4-wall design that includes a locking ramp for secure mating. The connector is panel mount and through hole solder terminated, making it suitable for robust industrial and automotive environments.
The contacts are made of brass with a tin finish, ensuring reliable conductivity and corrosion resistance. The insulation is glass-filled polybutylene terephthalate (PBT) in black, providing good mechanical strength and thermal stability. The operating temperature range is -40°C to 105°C, and the voltage rating is 250VAC. Current rating varies by wire gauge, so consult the manufacturer for specific wire sizes.
Additional features include a mounting flange and a sealed design, which enhance durability in harsh conditions. The connector is RoHS3 compliant and has an MSL of 1 (unlimited). It is commonly used in applications requiring a secure, high-density interconnection with a locking mechanism.
| Qty | Low | High |
|---|---|---|
| 1+ | $19.06 | $19.06 |
| 10+ | $16.20 | $16.20 |
| 25+ | $15.19 | $15.19 |
| 50+ | $14.46 | $14.46 |
| 160+ | $13.32 | $13.32 |
| 320+ | $12.69 | $12.69 |
| 640+ | $12.08 | $12.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
35 positions.
4.00mm (0.157 inches).
250VAC.
Panel mount and through hole.
-40°C to 105°C.
Tin.
Yes, RoHS3 compliant (unverified).
