| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,720 pcs
|
4720 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Industrial Grade | |
| Insulation Color | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

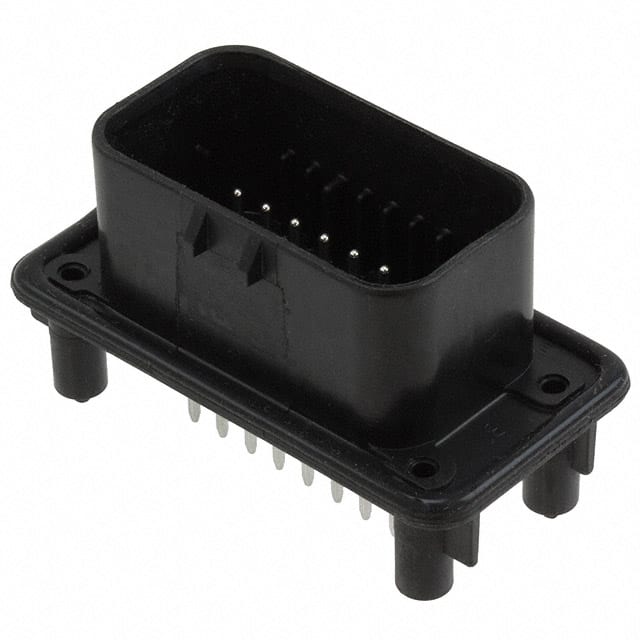

The TE Connectivity 776228-1 is a 23-position, 3-row shrouded header with male pin contacts, featuring a 4.00mm pitch and 4.00mm row spacing. It is designed for board-to-cable/wire connections and offers a secure locking ramp fastening system. The connector is panel mount and through hole with solder termination, making it suitable for robust industrial and automotive applications.
The header is constructed with a black glass-filled PBT insulator and brass contacts with a tin finish. It includes a mounting flange and is sealed for enhanced environmental protection. The operating temperature range is -40°C to 105°C, and the voltage rating is 250VAC. Current rating varies by wire gauge.
This component is RoHS3 compliant and has an MSL of 1 (unlimited). It is classified under the category of Headers, Male Pins within Rectangular Connectors.
| Qty | Low | High |
|---|---|---|
| 1+ | $9.29 | $9.29 |
| 10+ | $7.90 | $7.90 |
| 25+ | $7.40 | $7.40 |
| 50+ | $7.05 | $7.05 |
| 200+ | $6.39 | $6.39 |
| 400+ | $6.09 | $6.09 |
| 600+ | $5.92 | $5.92 |
| 1,000+ | $5.71 | $5.71 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 4.00mm (0.157 inches).
It has 23 positions, all loaded, arranged in 3 rows.
The voltage rating is 250VAC.
It uses panel mount and through hole mounting with solder termination.
The operating temperature range is -40°C to 105°C.
Yes, it is a shrouded header with 4-wall shrouding.
The contacts are made of brass with a tin finish.
