| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Industrial Grade | |
| Insulation Color | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

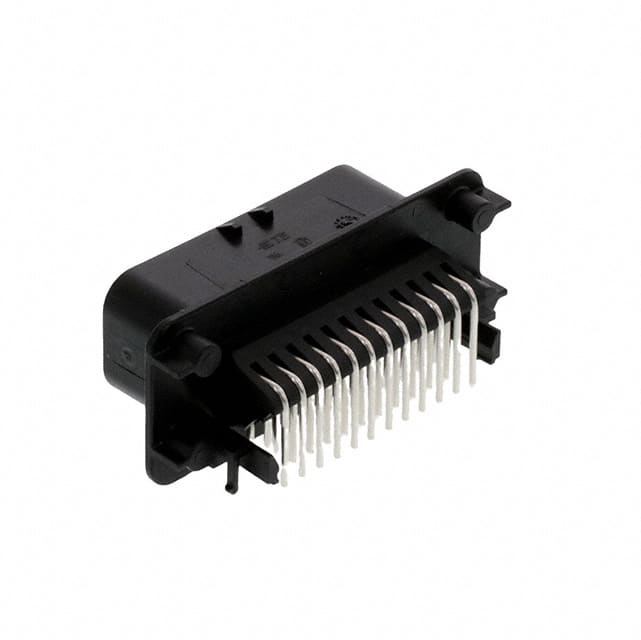

The TE Connectivity 776180-1 is a rectangular connector header designed for board-to-cable/wire applications. It features 35 male pin contacts arranged in 3 rows with a 4.00mm pitch and 4.00mm row spacing. The connector is shrouded with a 4-wall design and includes a locking ramp fastening system for secure mating.
This header supports panel mount and through-hole right-angle mounting with solder termination. The contacts are made of brass with a tin finish, and the housing is constructed from glass-filled polybutylene terephthalate (PBT) in black. The operating temperature range is -40°C to 105°C, and the voltage rating is 250VAC.
The connector includes a board guide and is sealable, making it suitable for applications requiring environmental protection. Current rating varies by wire gauge.
| Qty | Low | High |
|---|---|---|
| 1+ | $18.66 | $18.66 |
| 32+ | $14.61 | $14.61 |
| 128+ | $13.25 | $13.25 |
| 512+ | $12.01 | $12.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 776180-1 has 35 positions arranged in 3 rows.
The pitch is 4.00mm (0.157 inches) with a row spacing of 4.00mm.
The voltage rating is 250VAC.
The mounting type is panel mount, through hole, right angle.
The operating temperature range is -40°C to 105°C.
