| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,778 pcs
|
6778 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

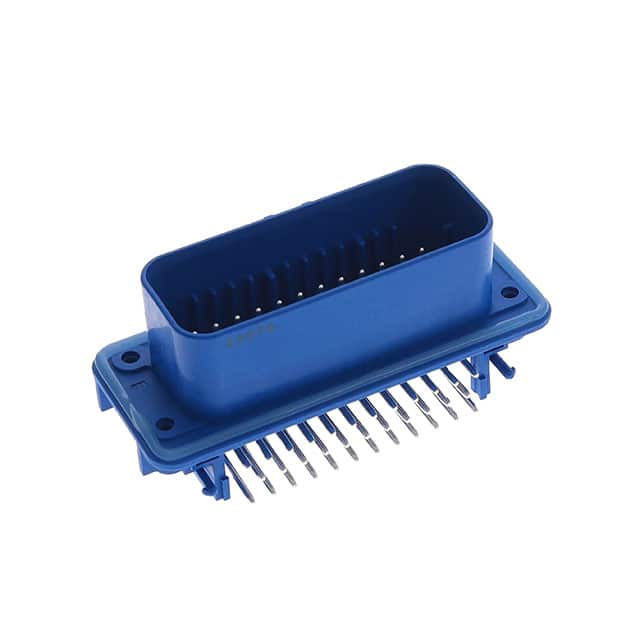

The TE Connectivity 776163-5 is a rectangular connector header with male pins. It features 35 positions arranged in 3 rows with a 4.00mm pitch and 0.157" row spacing. The header is shrouded with a 4-wall design for robust mating and protection against misalignment. It supports panel mount, through hole, right angle mounting and uses solder termination. The contact material is brass with a tin finish, and the housing is made of glass-filled polybutylene terephthalate (PBT) in blue. Electrical ratings include a voltage rating of 250VAC and an operating temperature range of -40°C to 105°C. The current rating varies by wire gauge. Additional features include a board guide and sealed design. The connector uses a locking ramp fastening type for secure connection.
| Qty | Low | High |
|---|---|---|
| 1+ | $17.61 | $17.61 |
| 32+ | $13.79 | $13.79 |
| 128+ | $12.50 | $12.50 |
| 512+ | $11.34 | $11.34 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The header has 35 positions, all loaded, in 3 rows.
The pitch is 4.00mm (0.157 inches) with 0.157 inch row spacing.
The voltage rating is 250VAC.
It supports panel mount, through hole, and right angle mounting.
The operating temperature range is -40°C to 105°C.
Yes, it has a shrouded 4-wall design.
The contact finish is tin.
