| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,787 pcs
|
7787 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

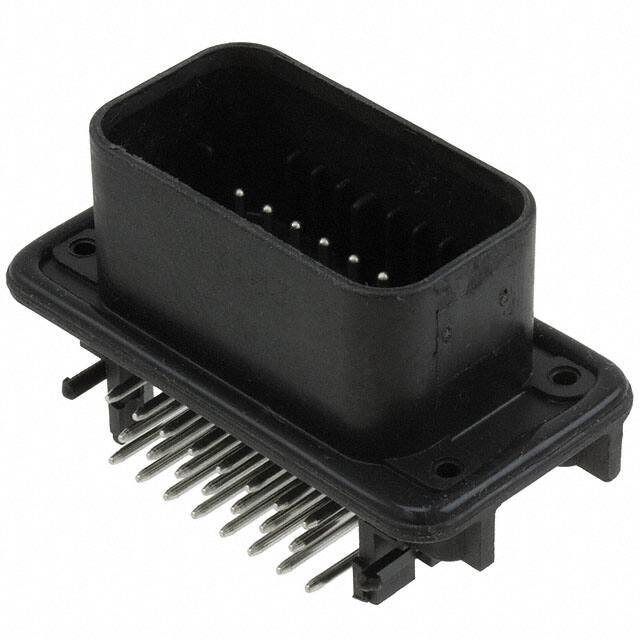

The TE Connectivity 776087-1 is a 23-position, 3-row, right-angle header designed for board-to-cable/wire applications. It features a 4.00mm pitch and 0.157" row spacing, with a shrouded 4-wall design for secure mating. The header uses male pin contacts made of brass with a tin finish, and the housing is black glass-filled PBT insulation material. Mounting options include panel mount and through-hole with solder termination. The connector includes a locking ramp fastening type and features a board guide and sealed construction. It is rated for 250VAC and operates over a temperature range of -40°C to 105°C. This header is suitable for applications requiring a robust, sealed connection in industrial or automotive environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $10.69 | $10.69 |
| 10+ | $9.09 | $9.09 |
| 200+ | $7.36 | $7.36 |
| 600+ | $6.81 | $6.81 |
| 1,000+ | $6.57 | $6.57 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 4.00mm (0.157").
It has 23 positions, all loaded, in 3 rows.
The voltage rating is 250VAC.
The operating temperature range is -40°C to 105°C.
It uses panel mount, through hole, right angle mounting.
Yes, it has a shrouded - 4 wall design.
The contact finish is tin.
