| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Storage Temperature | |
| Style | |
| Termination | |
| Termination Style |

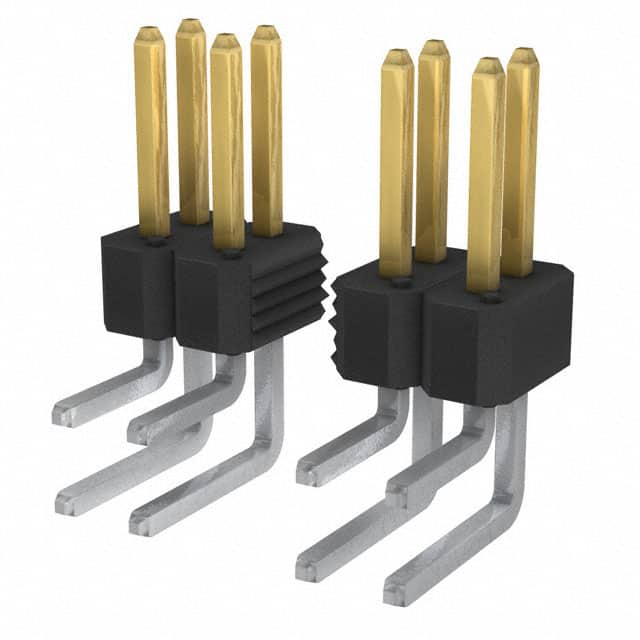

The 77317-104-14LF is a 14-position, 2-row, 2.54mm pitch right-angle header manufactured by Amphenol ICC. This connector is part of the unshrouded breakaway header family, designed for board-to-board interconnections. The male square pins are made of phosphor bronze with a tin finish (30µin) and have a contact length of 5.84mm. The insulator is black thermoplastic with UL94 V-0 flammability rating.
With a current rating of 3A per contact and an operating temperature range of -65°C to 130°C, this header is suitable for a wide variety of industrial and commercial applications. The right-angle mounting style allows for low-profile connections between perpendicular PCBs. The push-pull fastening type provides secure mating with standard female receptacles.
This header is RoHS3 compliant and REACH unaffected, with an MSL of Level 1 (unlimited). The through-hole termination ensures reliable solder joints. Typical applications include board-to-board stacking, I/O connections, and general-purpose signal routing.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.42 | $1.42 |
| 10+ | $1.20 | $1.20 |
| 100+ | $1.02 | $1.02 |
| 500+ | $0.91 | $0.91 |
| 1,000+ | $0.87 | $0.87 |
| 5,000+ | $0.78 | $0.78 |
| 10,000+ | $0.74 | $0.74 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
14 positions in 2 rows.
2.54mm (0.100").
3A per contact.
Through hole, right angle.
Tin plating with 30µin (0.76µm) thickness.
-65°C to 130°C.
Yes, RoHS3 compliant (unverified claim).
