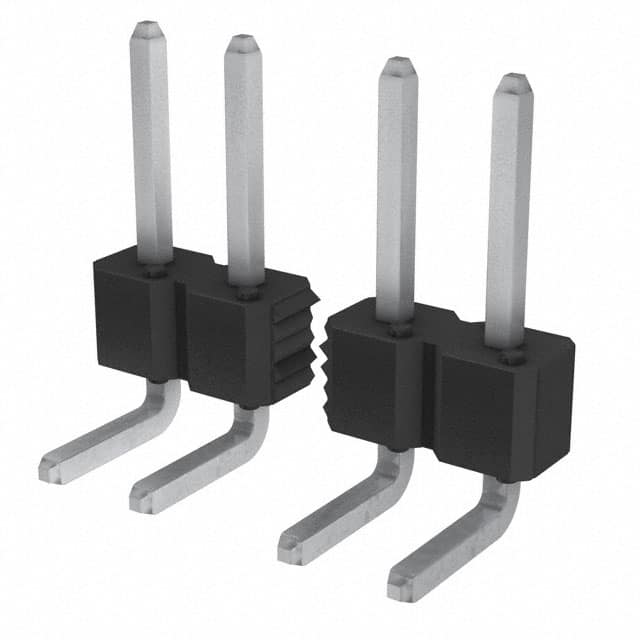

The Amphenol ICC 77315-418-36LF is a 36 position single row unshrouded header designed for board-to-board applications. It features a right angle through hole mounting style with solder termination, making it suitable for perpendicular PCB connections. The connector has a 2.54mm (0.100") pitch and all 36 positions are loaded with square male pin contacts made of phosphor bronze with a tin finish (2.00µm thickness).
The insulation is black thermoplastic rated UL94 V-0, with an insulation height of 2.40mm (0.094"). The contact length is 5.84mm (0.230"). The push-pull fastening type allows easy mating and unmating. The operating temperature range is -65°C to 125°C, and the current rating is 3A per contact.
This unshrouded breakaway header is commonly used in general purpose board-to-board interconnects where a low-profile, reliable connection is needed. The right angle orientation facilitates space-constrained designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.23 | $2.23 |
| 10+ | $1.90 | $1.90 |
| 100+ | $1.61 | $1.61 |
| 500+ | $1.44 | $1.44 |
| 1,000+ | $1.37 | $1.37 |
| 5,000+ | $1.22 | $1.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
36 positions, all loaded, in a single row.
2.54mm (0.100").
Through hole, right angle.
3A per contact.
-65°C to 125°C.
Tin, 2.00µm (78.7µin) thickness.
